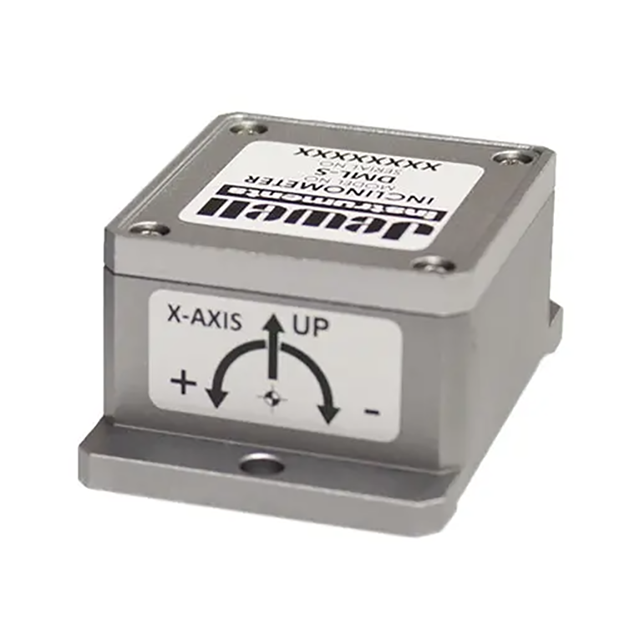

Jewell DML Digital MEMS Inclinometer

Updated:2025-12-17

Brand: Jewell
Model: DML
Description: The Jewell Instruments model DML is a low cost digital MEMS inclinometer for industrial applications. Units are available with RS-232, RS-485 and UART TTL output options. All DML series inclinometers
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell DML Digital MEMS Inclinometer Description：

Datasheet Outline Drawing

The Jewell Instruments model DML is a low cost digital MEMS inclinometer for industrial applications. Units are available with RS-232, RS-485 and UART TTL output options. All DML series inclinometers are rated IP67 for waterproofing up to 1m. Custom ranges and output types are also available on request.

Specifications

Angular Range (°)*	±10	±30	±60	±90
Resolution (°)	0.05	0.05	0.05	0.1
Hysteresis (°)	0.1	0.1	0.2	0.2
Transverse Axis Misalignment (° max)	±0.56	±0.56	±0.56	±0.56
Zero Offset Tolerance (°)	0.56	0.56	0.56	0.56
Zero Temperature Coefficient (°/°C)	±0.02	±0.02	±0.02	±0.02
Scale Factor Tolerance (%)	0.7	1.4	2.8	3
Scale Factor Temperature Coefficient (PPM/°C)	≤350	≤350	≤350	≤350
Warm Up (sec)	0.5	0.5	0.5	0.5
Time Constant (sec)	0.05	0.05	0.05	0.05

Output Rate	5Hz, 15Hz, 35Hz, 50Hz
Output Type	RS-232/RS-485/TTL
Electromagnetic Compatibility	EN61000 and GBT17626
Impact Resistance	100g@11ms, 3 times/axis (? sinusoid)
Vibration Resistance	10grms @ 10-1000Hz
Operating Temperature Range	-40 to +85°C
Storage Temperature Range	-55 to +100°C
Seal	IP67
Cables	1m Cable (standard)
Power Requirements	9-36 VDC @ 60mA

Weight	3.2 oz
Dimensions	2.17 × 1.46 × 0.95 in
Features	? Single-Axis and Dual-Axis Available ? Resolution: 0.05° ? Zero Temperature Coefficient: ±0.02°/°C ? -40° to +85°C Operation and Storage ? Digital RS232, RS485 or UART TTL Outputs ? 1m cable whip included
Applications	? Solar Tracking & Panel Positioning ? Vehicle Wheel Alignment ? Industrial Automation & Control ? Radar/Antenna Mast Alignment ? Platform Leveling ? Navigation Pitch/Roll Measurement
