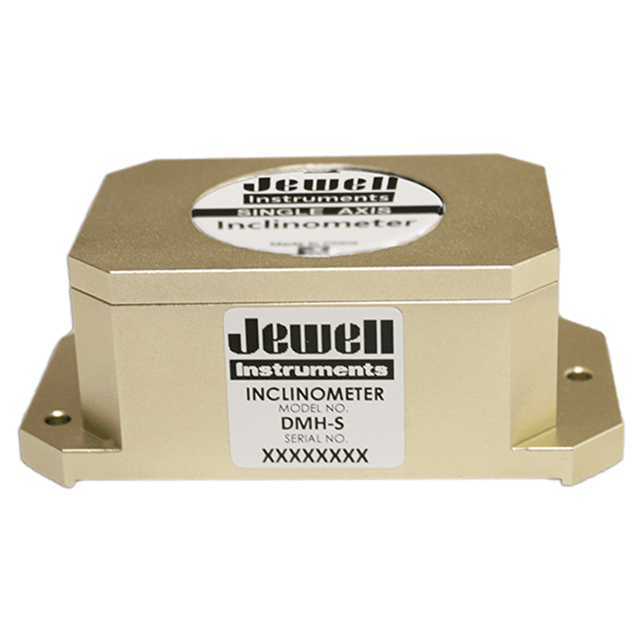

Jewell DMH Digital MEMS Inclinometer Series

Updated:2025-12-17

Brand: Jewell
Model: DMH
Description: The Jewell Instruments model DMH is a high precision MEMS inclinometer. Units are available with RS-232, RS-422, RS-485 and UART TTL options. All DMH series inclinometers are rated IP67 for waterproof
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell DMH Digital MEMS Inclinometer Series Description：

Datasheet Outline Drawing

The Jewell Instruments model DMH is a high precision MEMS inclinometer. Units are available with RS-232, RS-422, RS-485 and UART TTL options. All DMH series inclinometers are rated IP67 for waterproofing up to 1m. Custom ranges and output types are also available on request.

Specifications

Angular Range (°)*	±10	±15	±30	±60
Resolution (°)	0.001	0.001	0.001	0.001
Hysteresis (°)	0.005	0.007	0.008	0.1
Zero Offset Tolerance (°)	0.01	0.01	0.01	0.01
Zero Temperature Coefficient (°/°C)	±0.006	±0.006	±0.006	±0.006
Scale Factor Tolerance (%)	0.7	1.1	1.4	2.8
Scale Factor Temperature Coefficient (PPM/°C)	≤200	≤200	≤200	≤200
Warm Up (sec)	0.5	0.5	0.5	0.5
Time Constant (sec)	0.05	0.05	0.05	0.05

Output	5Hz, 15Hz, 35Hz, 50Hz
Output Type	RS-232, RS-422, RS-485, UART TTL
Electromagnetic Compatibility	EN61000 and GBT17626
Impact Resistance	100g@11ms, 3 times/axis (? sinusoid)
Vibration Resistance	10grms @ 10-1000Hz
Operating Temperature Range	-40 to +85°C
Storage Temperature Range	-55 to +100°C
Seal	IP67
Cables	1m Cable (standard)
Power Requirements	9-36 VDC @ 60mA
