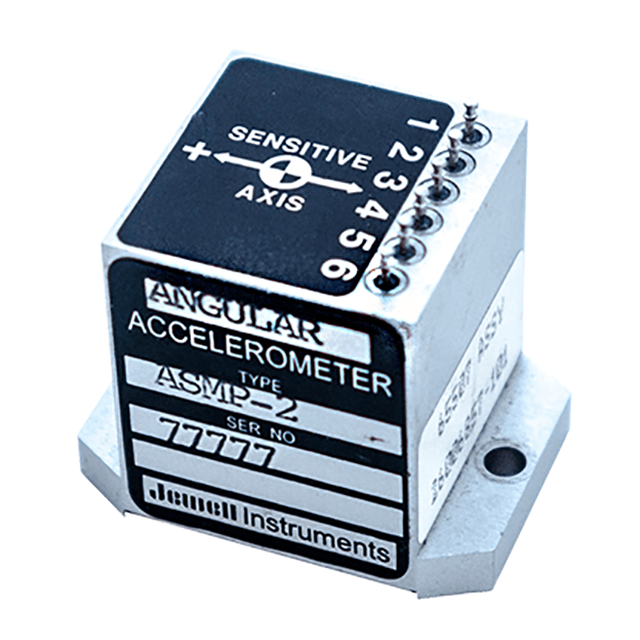

Jewell ASMP Angular Accelerometer

Updated:2025-08-16

Views:124

  • Brand: Jewell
  • Model: ASMP
  • Description: The Jewell ASMP Angular Accelerometer is configured specifically to yield a combination of miniaturization, high accuracy and ruggedness. The ASMP has been designed to minimize thermal errors associat
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Jewell ASMP Angular Accelerometer Description：

Datasheet Drawing

The Jewell ASMP Angular Accelerometer is configured specifically to yield a combination of miniaturization, high accuracy and ruggedness. The ASMP has been designed to minimize thermal errors associated with outdoor applications. The Jewell ASMP Series is the highest accuracy sensor of its class in the world today.

Specifications

Weight 2 oz
Dimensions 1.50 × 1.05 × 1.39 in
Features

? Bandwidth to 200 Hz
? 1.05" Cube Housing Size
? ± 15 Standard Input Voltage
? Aerospace Quality and Reliability

Applications

? Fatigue Monitoring
? Oil Well Drilling
? Flight Control Systems
? Automotive Angular Accelerometer Testing
? Antenna Stabilization
? Autopilot System Testing
? Optical System Stabilization
? Missile Orientation
? Fire Control

Input Range (rad/sec2)1 ±200 ±500 ±1000
Full Range Output (FRO, Volts ±1.0%) ±5.0 ±5.0 ±5.0
Non-linearity (%FRO maximum)2 0.5 0.2 0.1
Scale Factor (Volts/rad/sec2 nominal) 0.025 0.01 0.005
Scale Factor Temp Sens (PPM/°C maximum) 180 180 180
Bias (rad/sec2 maximum) ±1.0 ±4.0 ±4.0
Bias Temperature Sensor (rad/sec2 /°C maximum) 0.40 0.40 0.40
Bandwidth (-3dB, Hz nominal) 70 100 120
Alignment (True Sensitivity Axis to Mount, ° maximum) ±1.0 ±1.0 ±1.0
Resolution & Threshold (rad/sec2 maximum) 0.004 0.010 0.020
Input Voltage (VDC nominal)4 ±12 to ±18
Input Current (mA nominal) 10.0
Output Impedance (Ω nominal) 4000
Noise (mvrms maximum) 0.005
Operating Temperature Range -55 to +95°C
Survival Temperature Range -65 to +105°C
Vibration 100 grms
Seal MIL-STD-202, Method 112, IP65
