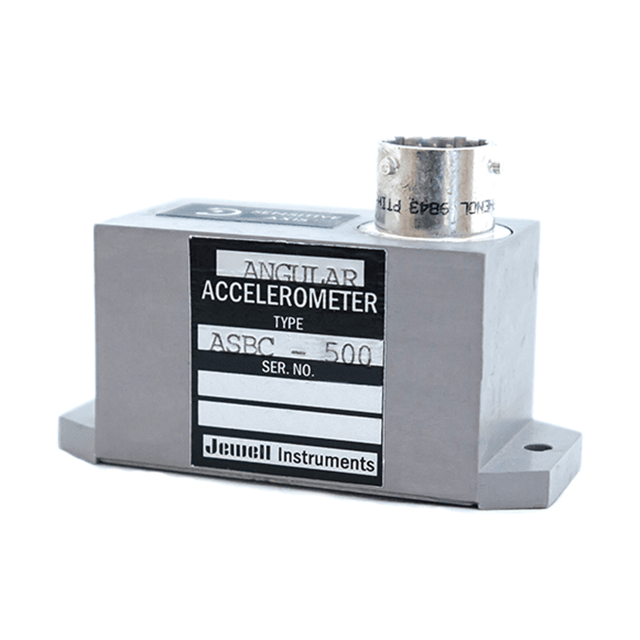

Jewell ASBC Series Angular Accelerometer

Updated:2025-08-13

Views:147

  • Brand: Jewell
  • Model: ASBC Series
  • Description: The Jewell ASB Series Angular Accelerometer is a general-purpose ±200 radian/second2 to ±1000 radian/second2 device for industrial, commercial and sensing requirements.
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Jewell ASBC Series Angular Accelerometer Description：

Datasheet Drawing

The Jewell ASB Series Angular Accelerometer is a general-purpose ±200 radian/second2 to ±1000 radian/second2 device for industrial, commercial and sensing requirements.

Specifications

Weight 3 oz
Dimensions 2.60 × 1.10 × 1.24 in
Features

? Bandwidths to 200 Hz
? IP65 Seals
? Available 28V Aircraft Input
? Connector or Pin Configuration
? Aerospace Quality and Reliability
? Low Output Impedance
? High Input Range

Options

? Unipolar Output
? 28 VDC Input, 0.2-4.8 VDC Telemetry Output
? 28 VDC Input, Biploar, Non-Isolated Output
? Low Output Impendance
? Lower Ranges Available on Request
? Up to 1500 radian/second2 Available

Applications

? Antenna Stabilization
? Acceleration Measurement for Guidance Control Systems
? Vehicle Ride Analysis
? Optical System Stabilization
? Autopilot System Input
? Motor Torque Measurement and Control
? Automotive Angular Acceleration Testing
? (6 Degrees of Freedom) Flight Simulators
? Dyno Testing

Input Range (rad/sec2)1 ±200 ±500 ±1000
Full Range Output (FRO, Volts ±1.0%) ±5.0 ±5.0 ±5.0
Non-linearity (%FRO maximum)2 0.50 0.20 0.10
Scale Factor (Volts/rad/sec2 nominal) 0.025 0.010 0.005
Scale Factor Temp Sens (PPM/°C maximum) 180 180 180
Bias (rad/sec2 maximum) 1.0 4.0 4.0
Bias Temperature Sensor (rad/sec2 /°C maximum) 0.05 0.05 0.10
Output Impedance (Ω nominal) 10.0k 4.0k 5.0k
Natural Frequency (Hz nominal)3 70 100 120
Bandwidth (-3dB, Hz nominal) 70 100 120
Input Axis Misalignment (° maximum) 1.0 1.0 1.0
Resolution & Threshold (rad/sec2 maximum) 0.005 0.005 0.005
