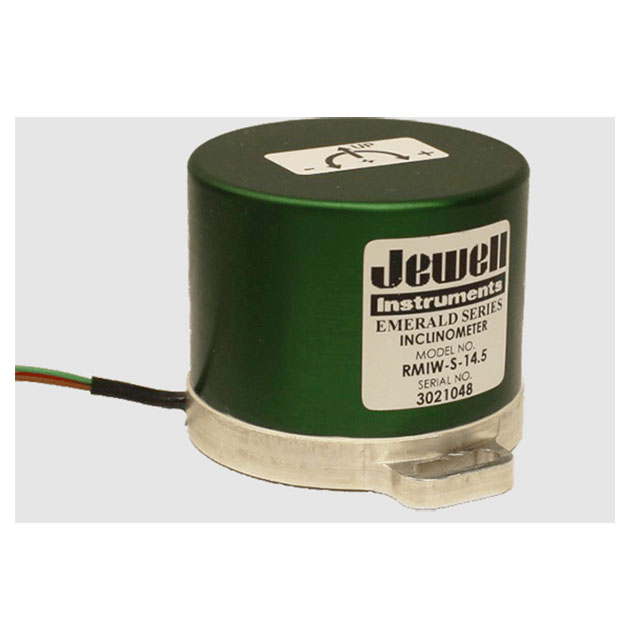

Jewell RMIW Single-Axis Analog Inclinometer

Updated:2025-12-17

Brand: Jewell
Model: RMIW
Description: The Jewell RMIW Series, RoHS compliant, flexure suspension, servo inclinometer is a precision internal grade sensing instrument. The RMIW is available in three different versions (D, L, or S), with cu
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell RMIW Single-Axis Analog Inclinometer Description：

Datasheet RMIW Single-Ended Outline Drawing RMIW Dual-Ended Outline Drawing

The Jewell RMIW Series, RoHS compliant, flexure suspension, servo inclinometer is a precision internal grade sensing instrument. The RMIW is available in three different versions (D, L, or S), with customer-specified mounting options, and varying input and output specifications in order to meet your needs.

Specifications

Input Range (°)	±3.0	±14.5	±30.0	±45.0	±60.0	±90.0
Full Range Output (VDC, FRO ±5%)¹	±5	±5	±5	±5	±5	±5
Non-linearity (%FRO max)²	0.05	0.02	0.02	0.02	0.04	0.05
Scale Factor (Volts/g, nominal)	95.5	20.0	10.0	7.1	5.8	5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	100	100	100	100	100	100
Bandwidth (-3dB, Hz, nominal)	5.0	5.0	5.0	5.0	5.0	5.0
Output Axis Misalignment (° maximum)	0.25	0.50	0.50	0.50	0.50	0.50
Pendulous Axis Misalignment (° maximum)	0.25	0.50	0.50	0.50	0.50	0.50
0° Output (Volts Range)	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05
0° Output Temperature Sensitivity (Volts/°C maximum)	0.0070	0.0017	0.0010	0.0008	0.0007	0.0007
Resolution & Threshold (μ)³	3.5	3.5	3.5	3.5	3.5	3.5

Number of Axes	1
Input Voltage Range (VDC)	±12 to ±18
Noise (Vrms, maximum)	0.002
Input Current (mA, maximum)	40
Output Impedance (Ohms, nominal)	10

Operating Temperature Range	-55°C to +85°C
Storage Temperature Range	-60°C to +90°C
Shock	500g, 1 msec, ? sine
Seal	IP65

Weight	4.2 oz
Dimensions	2.27 × 2.60 × 1.72 in
Features	? Mounts horizontally or vertically ? Extremely Rugged ? Lower Cost than traditional Force ? Balanced Inclinometers ? High Accuracy ? Greater Precision than MEMS Technologies ? Withstands up to 500g shock ? ±5V DC, 0-5V DC, and 4-20mA Outputs Available ? Single-Ended and Dual Power Inputs Available ? RoHS Compliant
Applications	? Wheel Alignment ? Construction Equipment ? Antenna Positioning ? Robotics ? Cross Rail Management ? Tilt Safety Systems ? Industrial and Machining Equipment
