30A-P-17 P/N7Z02693 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 30A-P-17
Description: The 30A-P-17 is a thermal power/energy laser measurement sensor for short pulsed lasers with a 17mm aperture. It can measure from 60mW to 30W and from 40mJ to 30J. It has the P type volume absorber an
Data download

Feedback
WeChat

QQ

Online Service

Product Details

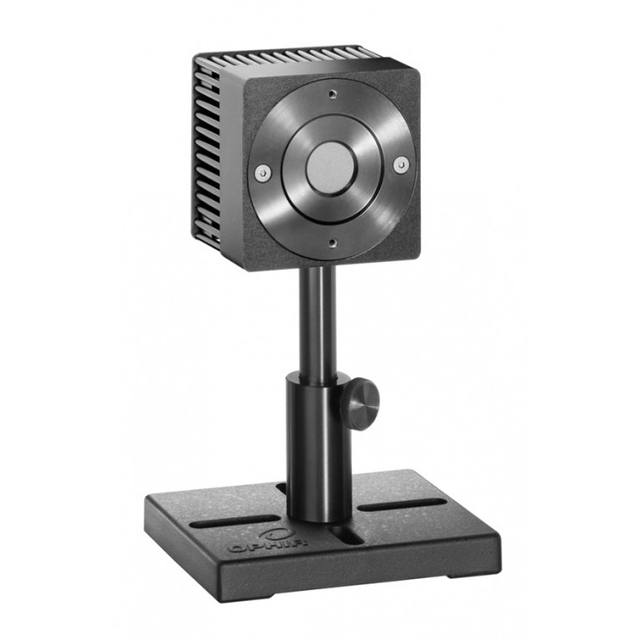

30A-P-17 P/N7Z02693 Laser Measurement Sensor Introduction：

The 30A-P-17 is a thermal power/energy laser measurement sensor for short pulsed lasers with a 17mm aperture. It can measure from 60mW to 30W and from 40mJ to 30J. It has the P type volume absorber and covers the spectral range from 0.15 to 8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

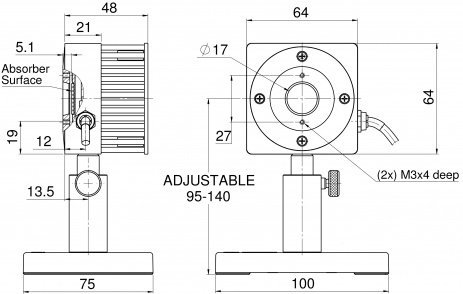

30A-P-17 P/N7Z02693 Laser Measurement Sensor Drawing：

30A-P-17 Drawing

30A-P-17 P/N7Z02693 Laser Measurement Sensor Specification：

Absorber Type	P type
Aperture	?17mm
Spectral Range	0.15-8μm
Power Range	60mW-30W
Energy Range	40mJ-30J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 48 D (mm)
Max Pulse Energy	30J
Max Average Power Density	0.05kW/cm2
Response Time	2.5 s
Max Energy Density (for <100ns)	1J/cm2
Max Energy Density (for 2ms)	1J/cm2
Max Average Power	30W
BeamTrack Functions	N.A.
