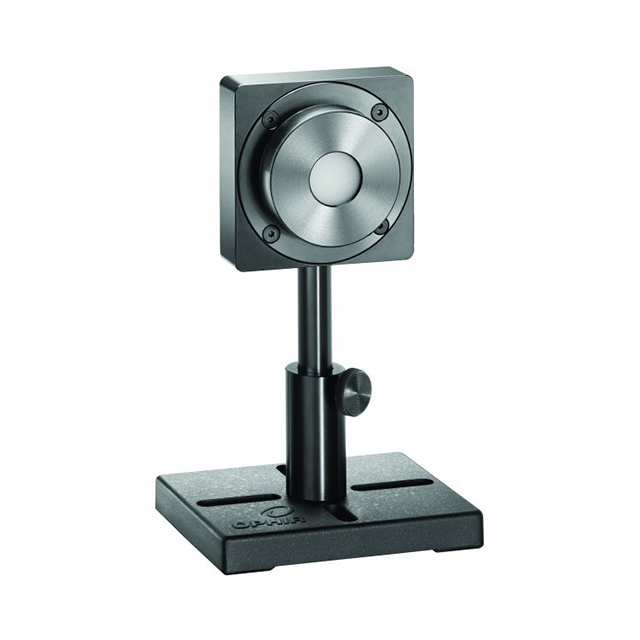

15(50)A-PF-DIF-18 P/N7Z02740 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 15(50)A-PF-DIF-18
Description: The 15(50)A-PF-DIF-18 is a thermal power/energy laser measurement sensor for high energy density pulsed lasers with a diffuser. It has a 17.5mm aperture and can measure from 140mW to 50W intermittentl
Data download

Feedback
WeChat

QQ

Online Service

Product Details

15(50)A-PF-DIF-18 P/N7Z02740 Laser Measurement Sensor Introduction：

The 15(50)A-PF-DIF-18 is a thermal power/energy laser measurement sensor for high energy density pulsed lasers with a diffuser. It has a 17.5mm aperture and can measure from 140mW to 50W intermittently and to 15W continuously. It measures energy from 60mJ to 200J. It has a damage threshold of up to 4J/cm2 for ns pulses and covers the spectral range from 0.24 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

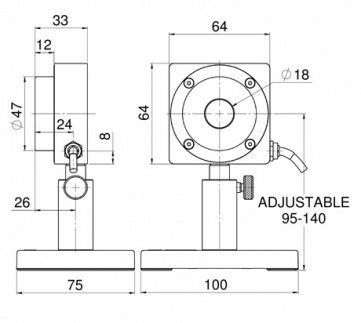

15(50)A-PF-DIF-18 P/N7Z02740 Laser Measurement Sensor Drawing：

15(50)A-PF-DIF-18 Drawing

15(50)A-PF-DIF-18 P/N7Z02740 Laser Measurement Sensor Specification：

Absorber Type	PF type + diffuser
Aperture	?17.5mm
Spectral Range	0.24-2.2μm
Power Range	140mW-50W
Energy Range	60mJ-200J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 33 D (mm)
Max Pulse Energy	200J
Max Average Power Density	0.5kW/cm2
Response Time	2 s
Max Energy Density (for <100ns)	4J/cm2
Max Energy Density (for 2ms)	50J/cm2
Max Average Power	50W
BeamTrack Functions	N.A.
