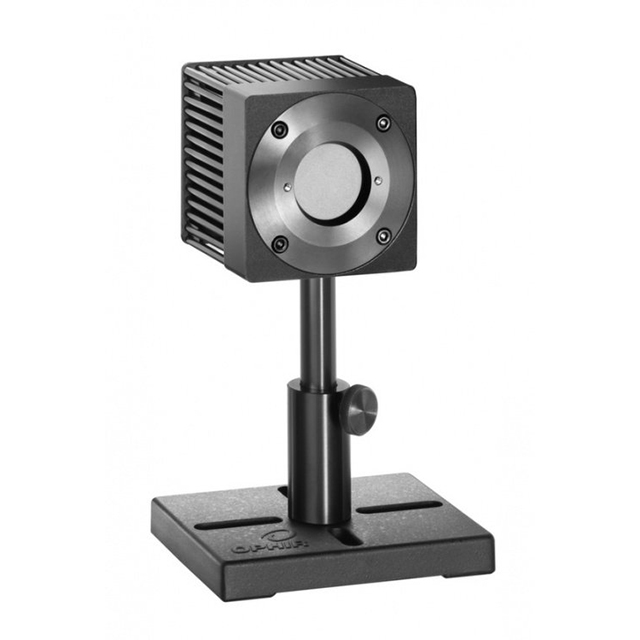

50(150)A-BB-26-PPS P/N7Z07907 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 50(150)A-BB-26-PPS
Description: The BeamTrack series 50(150)A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and pos
Data download

Feedback
WeChat

QQ

Online Service

Product Details

50(150)A-BB-26-PPS P/N7Z07907 Laser Measurement Sensor Introduction：

The BeamTrack series 50(150)A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 40mW to 50W continuously and to 150W intermittently.It can measure energy from 20mJ to 100J.The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

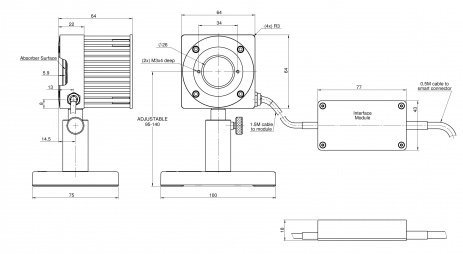

50(150)A-BB-26-PPS P/N7Z07907 Laser Measurement Sensor Drawing：

50(150)A-BB-26-PPS Drawing

50(150)A-BB-26-PPS P/N7Z07907 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	?26mm
Spectral Range	0.19-11μm
Power Range	40mW-150W
Energy Range	20mJ-100J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 64 D (mm)
Max Pulse Energy	100J
Max Average Power Density	12kW/cm2
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	150W
BeamTrack Functions	Power/Energy/Position/Size
