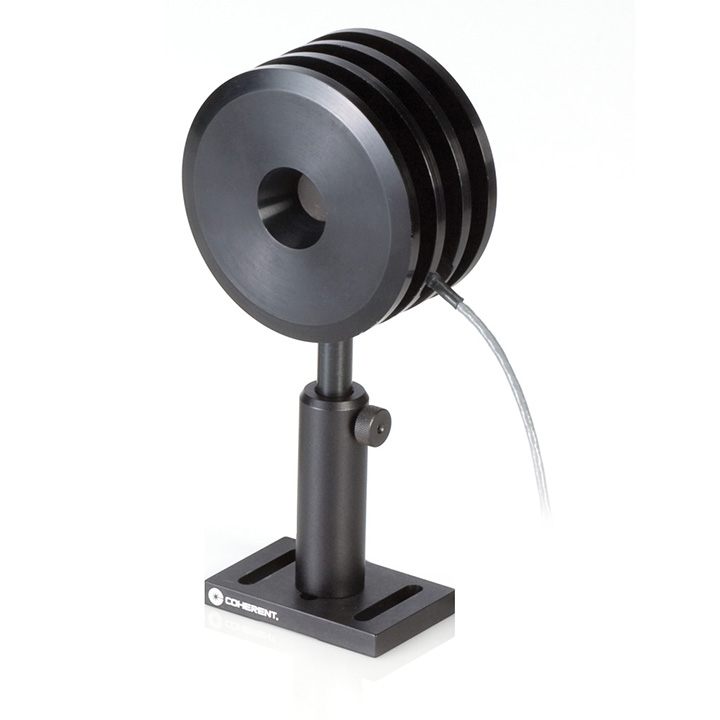

Coherent PM30 Laser Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PM30
Description: This PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power mete
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM30 Laser Power Sensor Description：

Datasheet

This PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1174257) is available.

Thermopile sensor for measuring pulsed & CW lasers between 100 mW and 30W.

Key Features:

100 mW to 30W range

19 mm diameter active area

Spectrally flat broadband coating

0.25 to 11 μm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Air

Power Range

100 mW to 30W

Active Area Diameter

19 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

0.5

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

0.5 to 50

Wavelength Range (micrometers)

0.25 - 11

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
