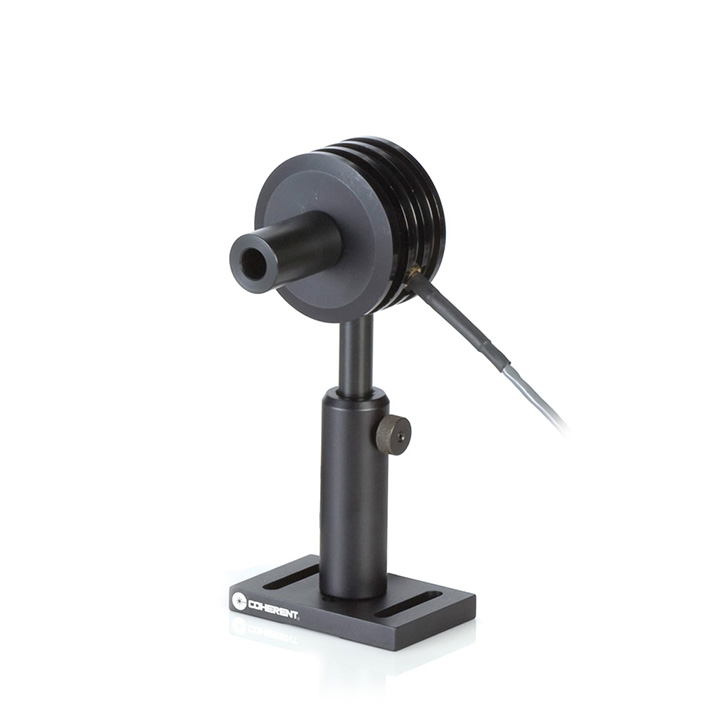

This PM3 sensor is an amplified thermopile power sensor intended for measuring low power lasers down into the mW range.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1174263) is available.
For enhanced thermal stability, the PM3Q (PN 1098419) includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.3 to 2.1 μm.
Key Features:
500 μW to 2W range
19 mm diameter active area
Spectrally flat broadband coating
0.19 to 11 μm spectral range
Convective air-cooled
ISO 17025 accredited
