Ophir PE50-UV-DIFH-C Pyroelectric Energy Sensor

Updated:2025-03-13

Brand: Ophir
Model: PE50-UV-DIFH-C
Description: The PE50-UV-DIFH-C pyroelectric energy sensor has a high damage threshold diffuser for concentrated beams. It has a 35 mm aperture and can measure energies from 100 μJ up to 10 J. It has a damage thre
Data download

Feedback
WeChat

QQ

Online Service

Product Details

POphir PE50-UV-DIFH-C Pyroelectric Energy Sensor Description：

Datasheet Drawing

The PE50-UV-DIFH-C pyroelectric energy sensor has a high damage threshold diffuser for concentrated beams. It has a 35 mm aperture and can measure energies from 100 μJ up to 10 J. It has a damage threshold of 95 J/cm2 for ms pulses. It can operate at repetition rates up to 10 kHz and covers the spectral range from 193 to 355 nm.

High rep rate metallic absorber with a 190-2200 nm spectral range

100 μJ to 10 J pulse energy measurement range

High damage threshold diffuser for concentrated beams

5 ms maximum pulse width

Repetition rates up to 10,000 Hz

Drawing

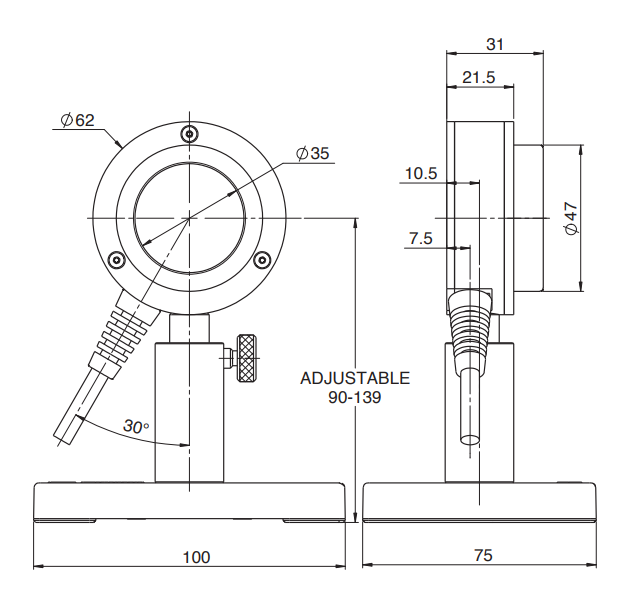

PE50-UV-DIFH-C Drawing

Specifications

Product Name	PE50-UV-DIFH-C
Aperture Size	?35 mm
Material	Metallic
Spectral Range	193-355 nm
Minimum Pulse Energy	100 μJ
Maximum Pulse Energy	10 J
Maximum Frequency	10,000 Hz
Maximum Average Power	25 W
Maximum Average Power Density	200 W/cm2
Maximum Pulse Width	5 ms
Damage Threshold (100 ns)	2 J/cm2
Damage Threshold (2 ms)	95 J/cm2
Diffuser	Yes
Cable Length	1.5 m
Dimensions	?62 x 31 mm
