AIC3Pro Air Ion Counter

Updated:2025-03-13

Brand: ALPHALAB
Model: AIC3Pro

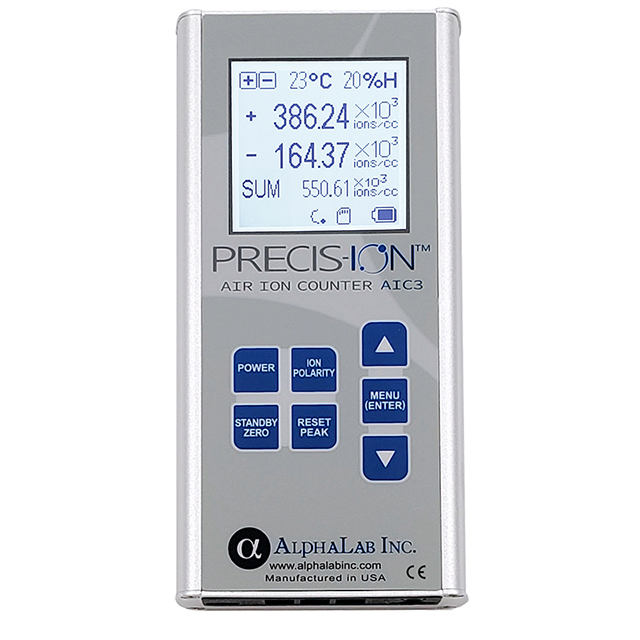

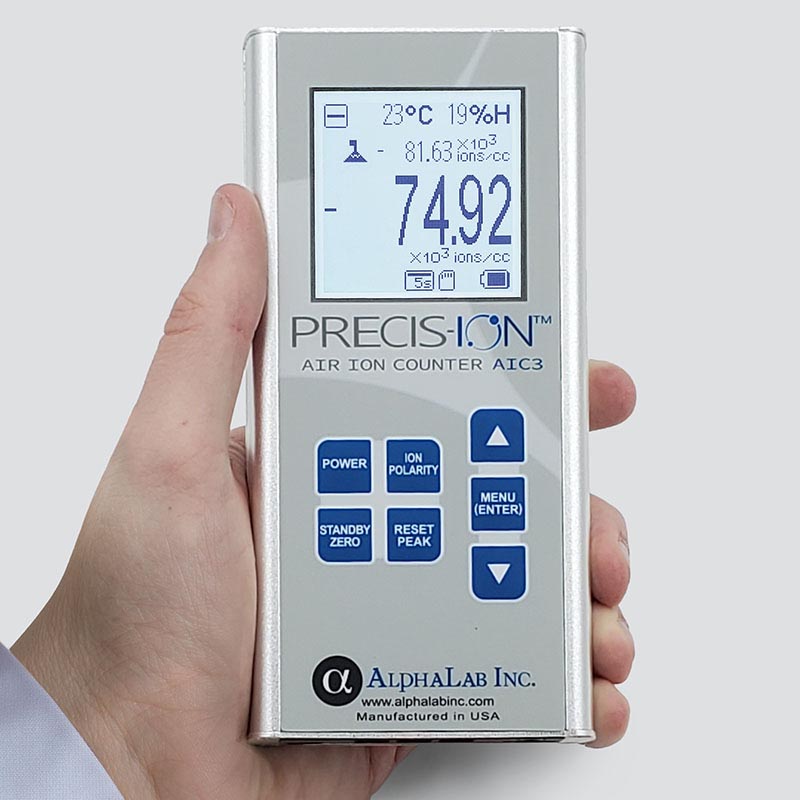

Description: Precis-Ion? Air Ion Counter Model AIC3Pro is a lightweight, handheld Gerdien condenser meter that measures the number of positive or negative air ions. The meter can display both polarities and their
Data download

Feedback
WeChat

QQ

Online Service

Product Details

AIC3Pro Air Ion Counter Description：

Operators Guide Quickstart Guide

The AIC3Pro comes packed full with all these features:

Dual Polarity Display with Sum

Ranges, 2 million ions/cc, or 200 million ions/cc – Selectable

Data Recording, Date/Time Stamped – Stored on Removable MicroSD Card

Data Streaming, Record Uploading, and Plotting – via Included PC App

Automatic re-zero for long-term unattended operation – Selectable

Peak Level Capture

Averaging – Selectable

Rechargeable Li Battery

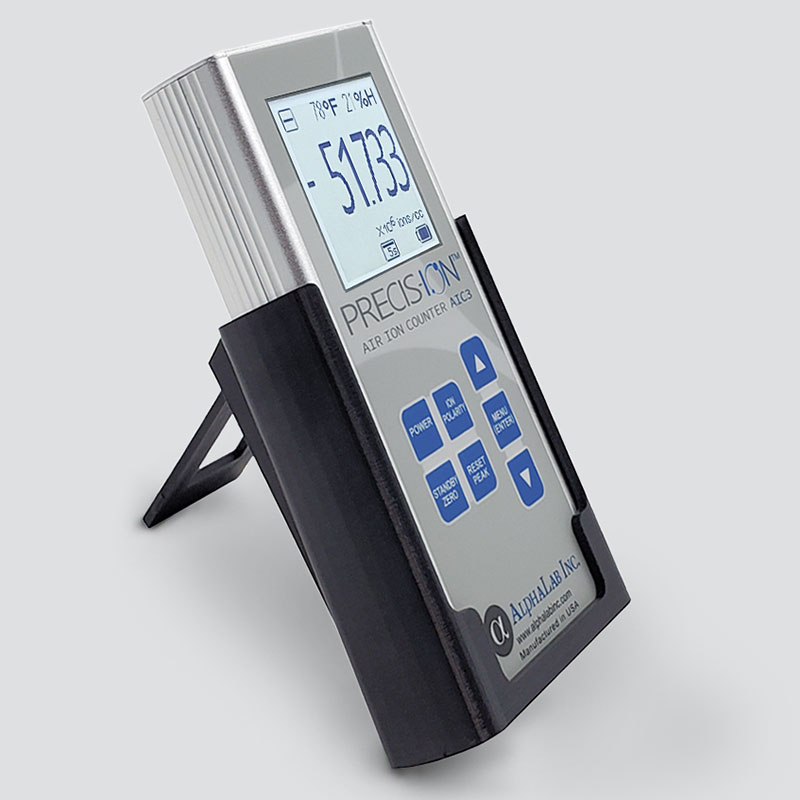

Tripod Mount, Wall Mount, and Dest Top Kick Stand

Deluxe Carrying Case

AIC3Pro Air Ion Counter Specification：

Ion Polarity	Positive, Negative, or Dual polarity with Sum – Selectable. In dual polarity mode, polarities are alternately updated every 7.5 sec.
Ion Scale Range	2 million or 200 million ions/cc – Selectable
Ion Resolution	10 ions/cc in 2 million scale, 1000 ions/cc in 200 million scale
Ion Accuracy	+/- 20%*, repeatability 5%
Averaging	None or 1 second to 15 seconds – Selectable
Peak Value	Selectable (in single polarity mode only)
Data Recording	Date and Time stamped files in a standard CSV format (supported by most data analysis software). Includes ion level, temperature, and humidity. In dual polarity mode, both polarities and sum are recorded. Data is recorded onto a removable MicroSD, 32GB max.
Streaming/Plotting	AlphaApp (free of charge Windows PC application) provides real-time data streaming, recorded data uploading, and plotting via a supplied 6’ USB cable.
Humidity Sensor	+/- 2% Relative Humidity
Meter Zeroing	Zero reference calibrated and self-test – Selectable Automatic re-zeroing for long term unattended operation None or 3, 6, 12, or 24hr – Selectable
Auto Shutdown	None or 5, 15, 30, or 60min. – Selectable
Display	128×128 pxl LCD, Backlight level is Selectable
Battery	2,000mAh rechargeable lithium-ion, UN38.3 certified 6-7 operating hours, Charging via USB C port with any USB power source
Charger (Included)	Input 110-240V, 50-60Hz, .35A, Output 5VDC, 1A
Environmental Limits	Temp -20°C to 43°C, Humidity 0-85% non-condensing Wind, <15km/hr (9mph)
Accessories (Included)	ESD shielding cap, Earthing ground cable with connectors. 3-in-1 kickstand, wall mount, and tripod mount. Deluxe protective carrying case.
Meter Size	6.6” x 3” x 1.5” (166.7mm x 76.2mm x 38.1mm)
Meter Weight	12.9 oz. (366 grams)
Carry Case	12″ x 10.6″ x 2.7″ (305mm x 269mm x 69mm), 1.1 lbs. (.5kg)
FCC Compliance	Part 15
CE Compliance	EMC: BS EN 55032:2015/Cor 1:2016, BS EN 61000-3-2:2019, BS EN 61000-3-3:2013+A1:2017, BS EN 55035:2017/A11:2020 RoHS: EN 50581:2012
