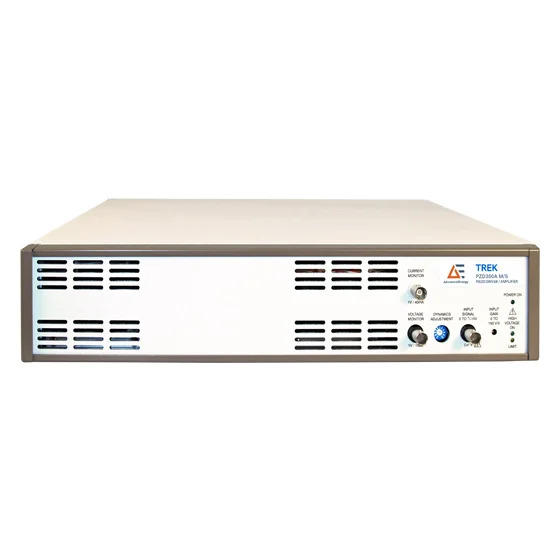

Trek PZD350A M/S High Voltage Amplifier and Piezo Driver Description：

Datasheet

The Trek PZD350A M/S piezo driver and amplifier system provides precise voltage control and delivers twice the current of Advanced Energy’s Trek PZD350A. In addition to superior bandwidth capabilities, it features an all-solid-state design and impressive slew rates. Voltages for this DC-powered amplifier are factory set to your specified ranges. And a four-quadrant active output stage that sinks or sources current into reactive or resistive loads completely through the output voltage range.

Features

Non-inverting input is standard, but an inverting amplifier configuration is available

Remote access

Dynamic adjustment

Precision voltage and current monitors

NIST-traceable calibration certificate provided with each unit

Benefits

Drive capacitive loads via a four-quadrant output

Enable high accuracy thanks to a closed-loop system

Safeguard equipment with short-circuit protection

Benefit from nearly maintenance-free operation and solid-state design

Take advantage of low-output noise and ultra-accurate outputs

Specifications
