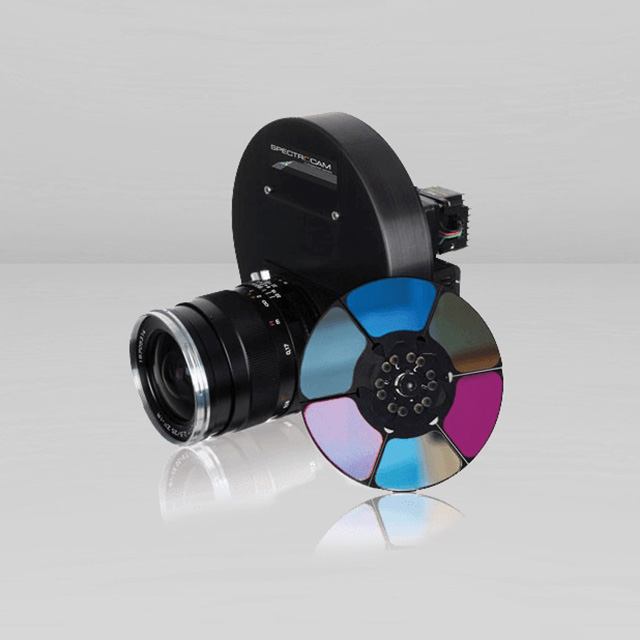

Torrent Photonics SpectroCam UV-VIS-NIR Multispectral Wheel Camera

Updated:2025-03-13

Brand: Torrent Photonics
Model: SpectroCam UV-VIS-NIR
Description: The SpectroCam? UV utilizes the JAI 5MP Go Series UV Enhanced CMOS camera. This UV multispectral camera allows users with the proper filters to see objects' reflected spectra from 200nm to 900nm.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Torrent Photonics SpectroCam UV-VIS-NIR Multispectral Wheel Camera Description：

Datasheet

The SpectroCam? UV utilizes the JAI 5MP Go Series UV Enhanced CMOS camera. This UV multispectral camera allows users with the proper filters to see objects' reflected spectra from 200nm to 900nm.

Applications include medical imaging, forensics, and authentication. The UV sensitivity allows users to image much lower in the spectrum, opening up biological and latent fingerprint imaging, among others.

Key Features

Sequential 6-8 band multispectral imaging

Full frame resolution at up to 25 frames/second

Interchangeable standard & custom spectral filters

Intuitive acquisition software

High-speed digital video output

OEM Customizations

Application-specific multispectral engine

Easy modular device integration

Optimized spectral bands & imaging

Proof of concept to high-volume production

Technical Specifications

Spectral Response	200nm to 1000nm (UV+VIS+NIR)
Resolution	2464x2056 px
Sensor	CMOS, Silicon, 5MP 3.45 μm Pixel Pitch
Spectral Bands	8 Filters
Active Area	8.5mm(H)x7.09mm(V) 11.1mm(D)
Frame Rate Overclocked	22.7fps
Optical Interface	F Mount standard (Manual Aperture & Focus), Range of Lenses Available, Adapters Available Upon Request
Digital Output	Gig-E Vision
Dimensions (No Lens or Mount)	136mm(H)x 24mm(W)x105mm(D)
Weight	680g
