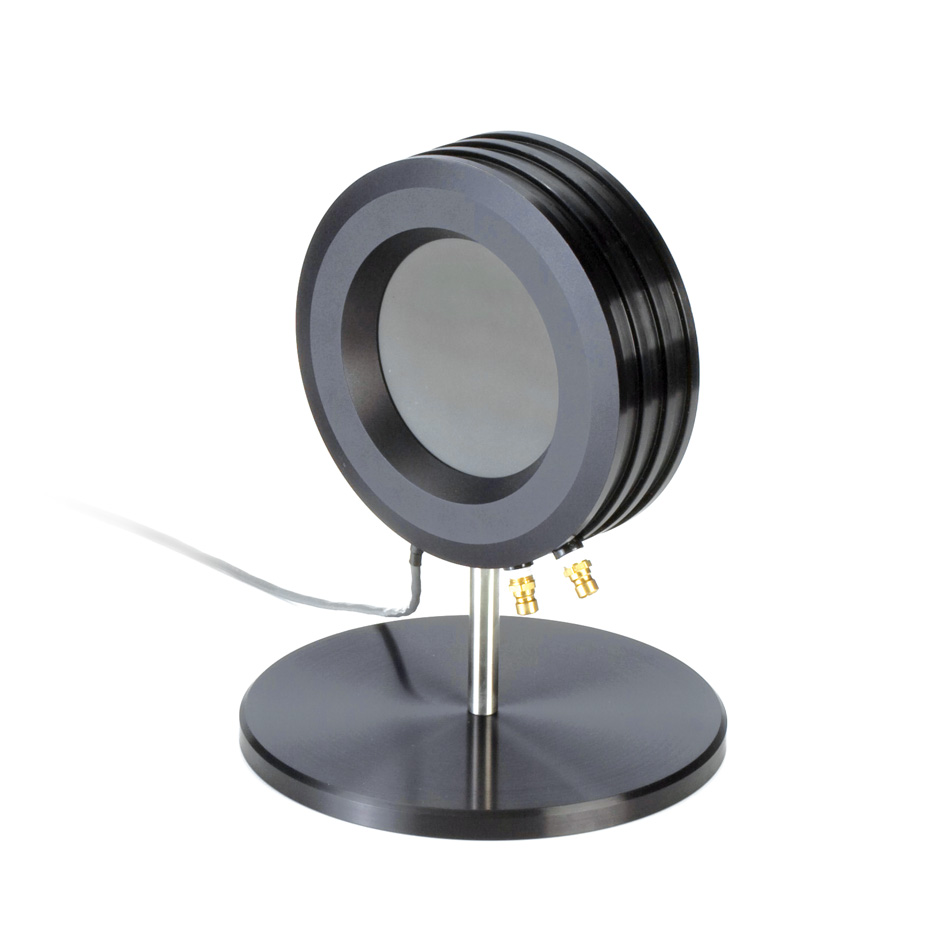

Coherent PM5K-100 Laser Power Sensor

Updated:2025-03-13

Views:157

  • Brand: Coherent
  • Model: PM5K-100
  • Description: This PM3K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 5000W. It’s large 100 mm diameter active area is designed for measuring direct diode lasers and large l
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PM5K-100 Laser Power Sensor Description：

Datasheet

This PM3K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 5000W. It’s large 100 mm diameter active area is designed for measuring direct diode lasers and large laser diode arrays.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1235755) is also available.

Large area, water-cooled kW thermopile sensor for measuring lasers between 100W and 5000W.

Key Features:

100W to 5000W range

100 mm diameter active area

Spectrally flat broadband coating

.25 to 11 μm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Water
Power Range
100W to 5000W
Active Area Diameter
100 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
20
Maximum Intermittent Power (watts)(<5 minutes)
7500
Wavelength Range (micrometers)
0.25 to 11
Maximum Power Density (kilowatts per square centimeter)
1 to 2.5
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
45
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
1070
Cable Length (meters)
2
