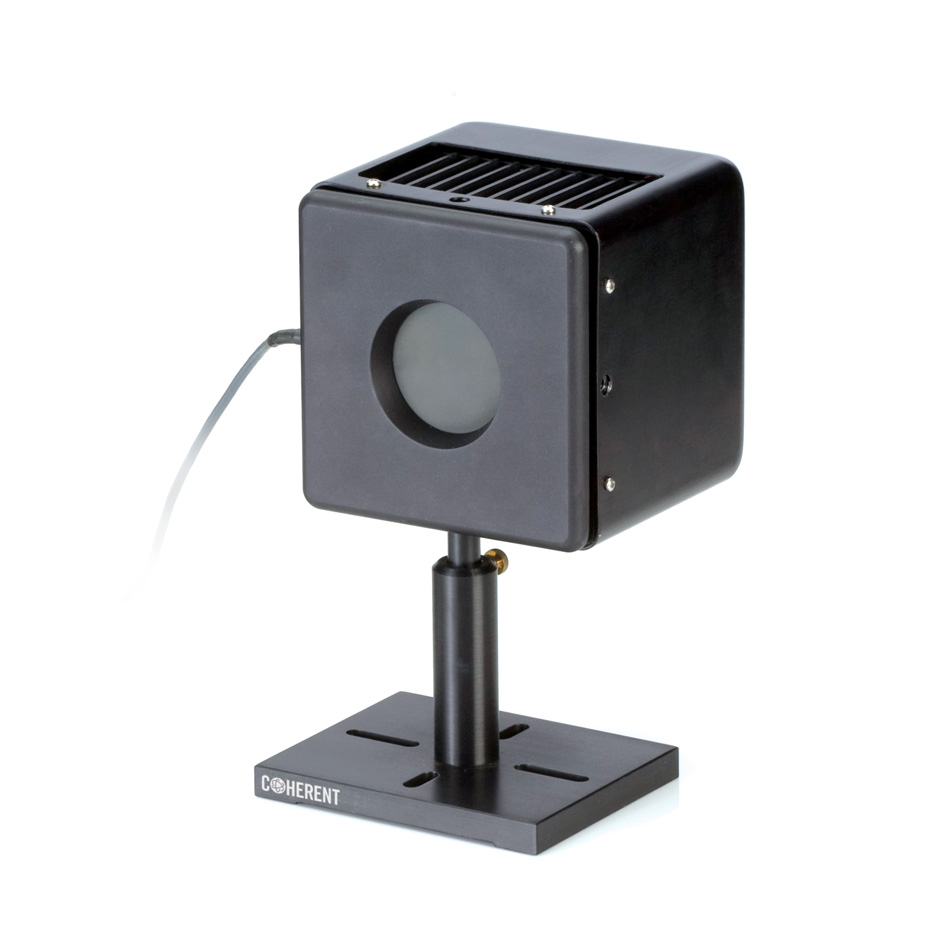

Coherent PM300F-50X Laser Power Sensor

Updated:2025-03-13

Views:156

  • Brand: Coherent
  • Model: PM300F-50X
  • Description: This PM300F-50X sensor is a fan-cooled laser power sensor intended for measuring lasers up to 300W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PM300F-50X Laser Power Sensor Description：

Datasheet

This PM300F-50X sensor is a fan-cooled laser power sensor intended for measuring lasers up to 300W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Key Features:

1W to 300W range

50 mm diameter active area

UV coating

0.15 to 1 μm spectral range

Fan-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Fan
Power Range
1W to 300W
Active Area Diameter
50 mm
Detector Coating
UV
Noise Equivalent Power (milliwatts)
5 mW (w/o fan), 100 mW (with fan)
Maximum Intermittent Power (watts)(<5 minutes)
450
Long-Pulse Joules Range (joules)
1 to 300
Wavelength Range (micrometers)
0.15 to 1
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
