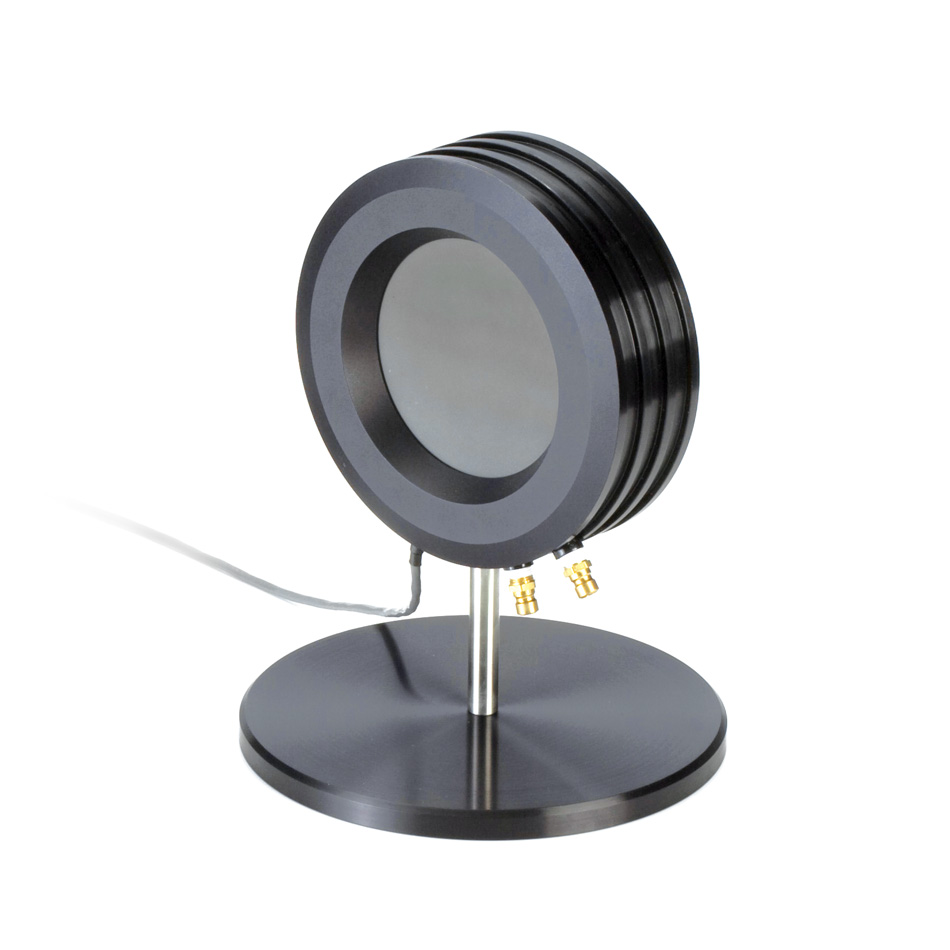

Coherent PM1KX-100 Water-cooled kW Laser Power Sensor

Updated:2025-03-13

Views:277

  • Brand: Coherent
  • Model: PM1KX-100
  • Description: This PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spec
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PM1KX-100 Water-cooled kW Laser Power Sensor Description：

Datasheet

This PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Key Features:

100W to 1000W range

100 mm diameter active area

UV coating

0.15 to 1 μm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Water
Power Range
1W to 1000W
Active Area Diameter
100 mm
Detector Coating
UV
Noise Equivalent Power (milliwatts)
20
Maximum Intermittent Power (watts)(<5 minutes)
1500
Wavelength Range (micrometers)
0.15 to 1
Maximum Power Density (kilowatts per square centimeter)
1 to 2.5
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
45
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
1070
Cable Length (meters)
2
