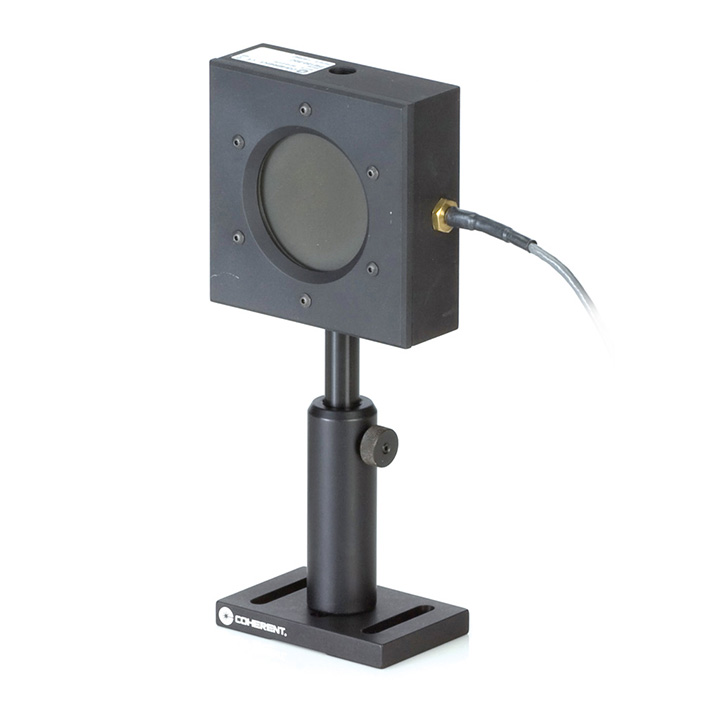

Coherent PM150-50XC Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PM150-50XC
Description: This PM150-50XC sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W, and up to 80W without water for short durations (up to five minutes at a time). It incorporates a
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM150-50XC Power Sensor Description：

Datasheet

This PM150-50XC sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W, and up to 80W without water for short durations (up to five minutes at a time). It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Water-cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 80W without water, intermittently, for up to five minutes.

Key Features:

300 mW to 150W range

50 mm diameter active area

UV coating

0.15 to 1 μm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Water, Air (intermittent)

Power Range

300 mW to 150W

Active Area Diameter

50 mm

Detector Coating

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

80, air-cooled

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.15 - 1

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
