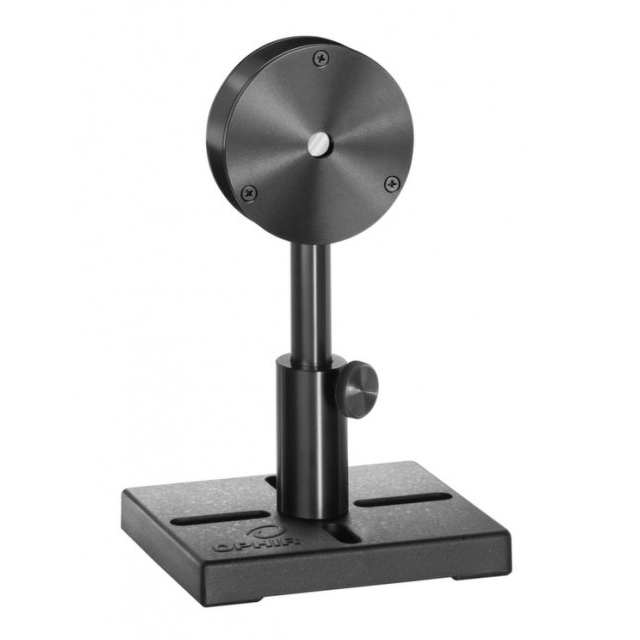

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies

Updated:2025-03-13

Views:198

  • Brand：Ophir
  • Model：PE9-ES-C
  • Description: The PE9-ES-C is a pyroelectric energy meter for very low energies with an 8mm aperture. It can measure energies from 0.1uJ up to 200uJ. It can operate at repetition rates up to 25kHz and covers the sp
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Description：

The PE9-ES-C is a pyroelectric energy meter for very low energies with an 8mm aperture. It can measure energies from 0.1uJ up to 200uJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

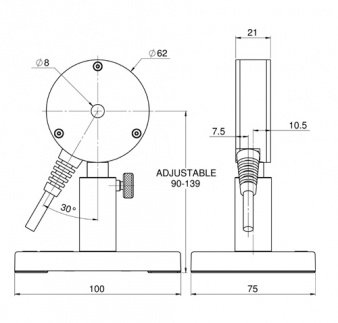

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Drawing：

PE9-ES-C Drawing

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Specifications：

Absorber Type metallic
Aperture ?8mm
Spectral Range 0.15-12μm
Energy Range 0.1μJ-200μJ
Maximum Frequency 25,000Hz
Dimensions ?62 W x 21 D (mm)
Max Pulse Energy 200μJ
Max Average Power Density 30W/cm2
Max Pulse Width 20μs
Damage Threshold(for <100ns) 0.1J/cm2
Damage Threshold(for 2ms) 6J/cm2
Max Average Power 2W
