PE50BF-C 7Z02934 High Damage Threshold Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE50BF-C
Description: The PE50BF-C is a high damage threshold pyroelectric energy meter with a 46mm aperture. It can measure energies from 120μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spec
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE50BF-C 7Z02934 High Damage Threshold Pyroelectric Energy Meter Description：

The PE50BF-C is a high damage threshold pyroelectric energy meter with a 46mm aperture. It can measure energies from 120μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

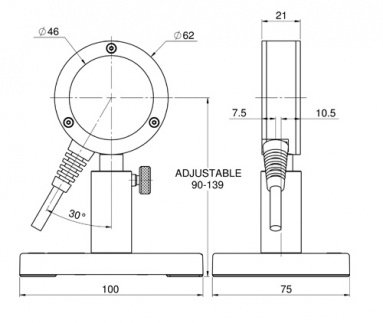

PE50BF-C 7Z02934 High Damage Threshold Pyroelectric Energy Meter Drawing：

PE50BF-C Drawing

PE50BF-C 7Z02934 High Damage Threshold Pyroelectric Energy Meter Specifications：

Absorber Type	BF
Aperture	?46mm
Spectral Range	0.15-3μm, 10.6μm
Energy Range	120μJ-10J
Maximum Frequency	250Hz
Dimensions	?62 W x 21 D (mm)
Max Pulse Energy	10J
Max Average Power Density	20W/cm2
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	0.8J/cm2
Damage Threshold(for 2ms)	10J/cm2
Max Average Power	15W
