PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE25BF-C
Description: The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spect
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Description：

The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

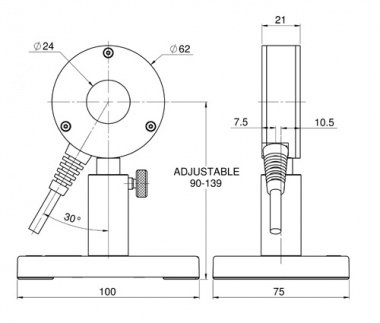

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Drawing：

PE25BF-C Drawing

PE25BF-C 7Z02935 High Damage Threshold Pyroelectric Energy Meter Specifications：

Absorber Type	BF
Aperture	?24mm
Spectral Range	0.15-3μm, 10.6μm
Energy Range	60μJ-10J
Maximum Frequency	250Hz
Dimensions	?62 W x 21 D (mm)
Max Pulse Energy	10J
Max Average Power Density	20W/cm2
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	0.8 J/cm2
Damage Threshold(for 2ms)	10 J/cm2
Max Average Power	15W
