PD300RM-UV 7Z02479 Photodiode Irradiance And Dosage Sensor

Updated:2025-03-13

Brand：Ophir
Model：PD300RM-UV
Description: The PD300RM-UV LED and laser radiometer replaces traditional radiometers which are calibrated to a single wavelength (254nm, 365nm, etc.), offering calibration over a broad spectral range, which the u
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PD300RM-UV 7Z02479 Photodiode Irradiance And Dosage Sensor Description：

The PD300RM-UV LED and laser radiometer replaces traditional radiometers which are calibrated to a single wavelength (254nm, 365nm, etc.), offering calibration over a broad spectral range, which the user can access by entering any wavelength in the calibration range. The PD300RM is a general purpose circular geometry photodiode irradiance and dosage sensor with an 8mm aperture and a cosine corrected diffuser. Its spectral range is 200-850nm and its irradiance measuring range is 100nW/cm2 - 250mW/cm2. The sensor comes with a 1.5 meter cable for connecting to StarBright & StarLite meters or Juno+ PC interface.

PD300RM-UV 7Z02479 Photodiode Irradiance And Dosage Sensor Drawing：

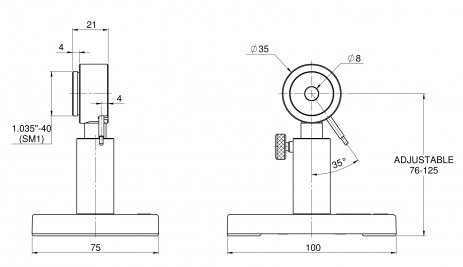

PD300RM-UV Drawing

PD300RM-UV 7Z02479 Photodiode Irradiance And Dosage Sensor Specifications：

Aperture	?8mm
Spectral Range	200-850nm
Irradiance Range	100nW/cm2-250mW/cm2
Dimensions	?35 W x 21 D (mm)
Max Average Power Density	10W/cm2
Response Time	0.2 s
Thermal Coefficient	-0.03%/°C
f'2 Cosine Correction Factor Accuracy	5%
