current position:home page>Products>optical instrument>Ophir>

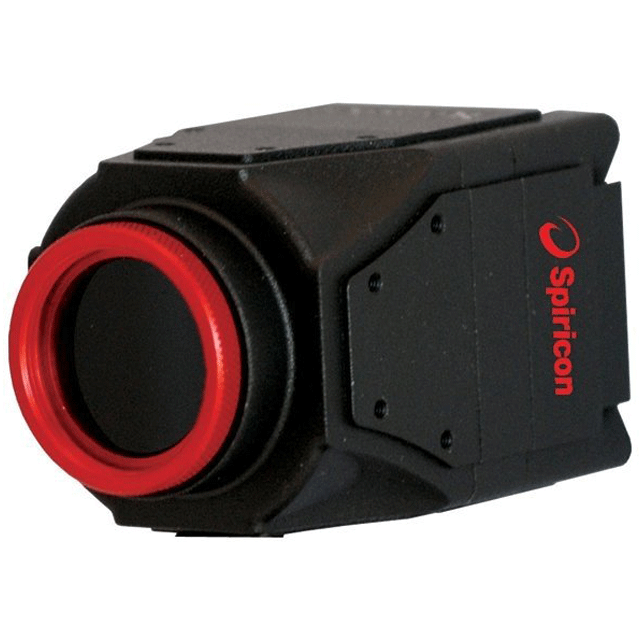

LT665 Beam Profiling Camera

Updated:2025-03-13

Views:269

  • Brand: OPHIR
  • Model: LT665
  • Description: The LT665 camera accurately captures and analyzes wavelengths from 190nm - 1100nm. It features a compact design, wide dynamic range, unparalleled signal to noise ratio, and a 1" format that makes it i
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

LT665 Beam analysis camera features

User's Manual

  1. 2752x2192 pixel resolution with a 4.4μm pixel pitch

  2. Adjustable Gain levels and programmable electronic shutter

  3. BeamGage Standard or Professional software included

  4. USB 3.0 Large Format Silicon CCD High Resolution Camera with BeamGage

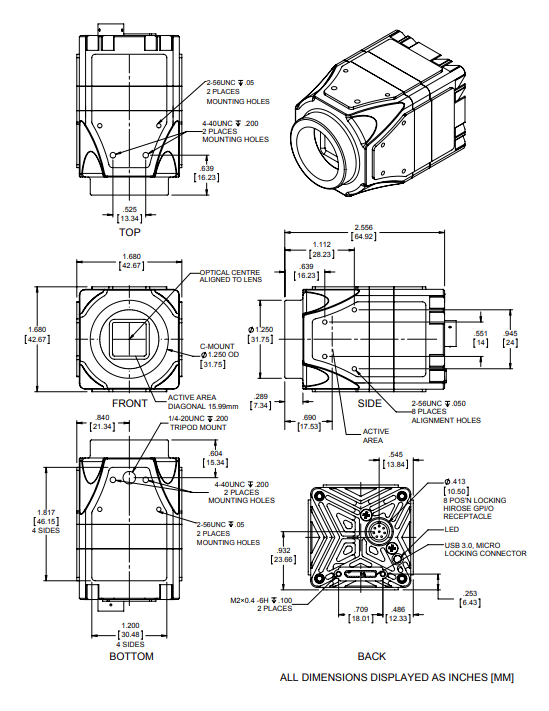

LT665 beam analysis camera drawing

LT665 Beam analysis camera specifications

Wavelengths 190-1100nm
Beam Sizes 46μm - 9.9mm
Interface USB 3.0
Sensor Type Silicon CCD
Compatible Light Sources CW, Pulsed
Active Area 12.5mm x 10.0mm
Elements 2752 x 2192
Effective Pixel Pitch 4.54μm
Dynamic Range 54 dB
Frame Rate at Full Resolution 27 fps
Compliance CE, UKCA, China RoHS

LT665 Beam analysis camera often asks questions

What is the distance from the front of the camera to the sensor?

This C-mount Standard camera has a sensor depth from the front of the camera to the sensor of 17.5mm.

What is the saturation level of the LT665 camera?

The saturation intensity for the LT665 is 1.3μW/cm2

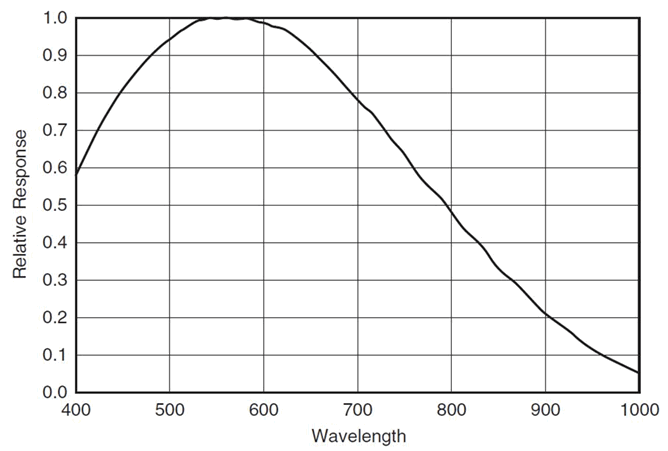

At what wavelengths is the LT665 most responsive?
What is the framerate of the LT665?

27 Frames/second

What beam sizes can I measure with the LT665?

46μm - 9.9mm
