LIA-BV(D)-150 SINGLE-BOARD LOCK-IN AMPLIFIERS SERIES

Updated:2025-03-13

Brand name:FEMTO
Model number: LIA-BV(D)-150
Description: A PC card is exposed to electromagnetic interference in the internal computer case. Therefore, using a PC card to measure extreme sensitivity under weak signal conditions is not practical. FEMTO's LIA
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Single and dual phase 19" boards
Working frequency 5 Hz up to 120 kHz
Phase shifter 0° ... 360°
Current and voltage input
Parameter control by local switches and opto-isolated digital inputs
Mounting kit MK-LIA-2 and reference oscillator module SOM-1 available

HIGH PERFORMANCE AT AN ATTRACTIVE PRICE

The high prices for usual desktop lock-in amplifiers often impede their use in cost sensitive applications. For this reason, FEMTO designed a complete and easy-to-use lock-in board at a very attractive price. All settings for sensitivity, time constant and phase shift can be selected either manually by front-panel switches or remotely by a PC via the digital interface. Additional signal filters can be configured by jumpers on the board to further increase the dynamic reserve in demanding applications.

19" BOARD VERSUS PC CARD

A PC card is exposed to the electromagnetic disturbed environment inside a computer case. Therefore, using a PC card for ultra-sensitive measurements of small signals is often not practical. FEMTO's Series LIA-BV(D)-150 Lock-In Amplifiers are designed as 19" boards which can operate in EMI-designed standard cases which offer best possible shielding and noise suppression. In addition, they are the perfect choice for designing high-performance multi-channel systems.

APPLICATIONS

Spectroscopy
Luminescence, fluorescence, phosphorescence measurements
Light scattering measurements
Opto-electronical quality control
Integration in industrial and scientific measurement-systems
Multi-channel-systems at an attractive price

Model	LIA-BV-150-L Single Phase	LIA-BV-150-H Single Phase	LIA-BVD-150-L Dual Phase	LIA-BVD-150-H Dual Phase
Working Frequency	5 Hz - 10 kHz	50 Hz - 120 kHz	5 Hz - 10 kHz	50 Hz - 120 kHz
Time Constants	3 ms - 10 s 6 or 12 dB/oct.	300 μs - 1 s 6 or 12 dB/oct.	3 ms - 10 s 6 or 12 dB/oct.	300 μs - 1 s 6 or 12 dB/oct.
Adjustable Signal Filter[6 dB/oct.]	Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz	Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz	Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz	Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz
Datasheet	367 kB	367 kB	369 kB	369 kB
Outputs	X = in phase, ±10 V full scale, short-circuit protected, Signal monitor output		X = in phase, Y = quadrature, R = magnitude, ±10 V full scale, short-circuit protected,Signal monitor output
Sensitivity (Full Scale)	Voltage: 3 μV - 1 V in 1-3-10 steps Current: 30 pA - 10 μA in 1-3-10 steps
Voltage Input	True-differential instrumentation amplifier, noise 12 nV/√Hz
Current Input	Transimpedance amplifier, gain 100 kV/A, noise 0.4 pA/√Hz
Reference Input	±100 mV to ±5 V, switchable to TTL
Phase	Adjustable 0° - 360°; resolution: 8-bit @ f ≤ 60 kHz, 7-bit @ f > 60 kHz Temperature drift <0.01°/K
Max. Dyn. Reserve	80 dB
Digital Control	16 TTL/CMOS inputs: 8-bit phase, 4-bit time constant, 4-bit sensitivity
Power Supply	±15 V, +120 mA / -60 mA
Dimensions	160 x 100 x 20 mm (L x W x H), weight 100 g (0.22 lbs)

The optional Reference Oscillator SOM-1 can be connected by an extension connector inside the module. Power supply via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet.

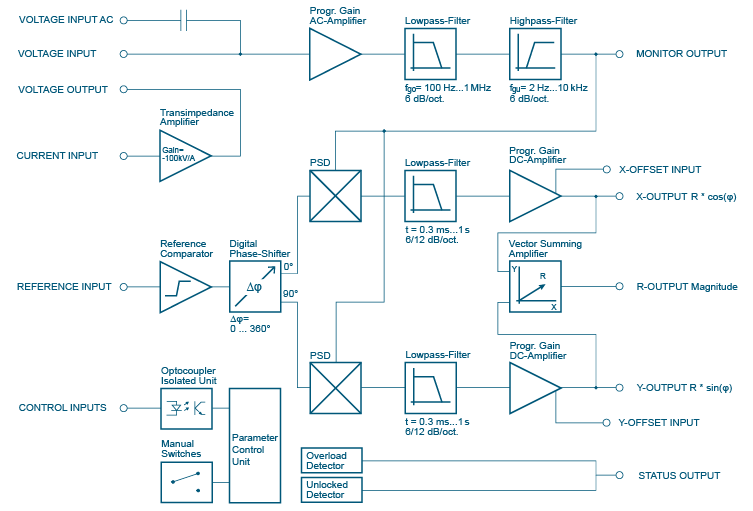

Block Diagram LIA-MVD-200-H
