L50(150)A-PF-35 P/N7Z02737 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: L50(150)A-PF-35
Description: The L50(150)A-PF-35 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 35mm aperture and can measure from 100mW to 150W intermittently and to 50W continuous
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(150)A-PF-35 P/N7Z02737 Laser Measurement Sensor Introduction：

The L50(150)A-PF-35 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 35mm aperture and can measure from 100mW to 150W intermittently and to 50W continuously. It measures energy from 50mJ to 300J. It has a damage threshold of up to 3J/cm2 for ns pulses and covers the spectral range from 0.15 to 20μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

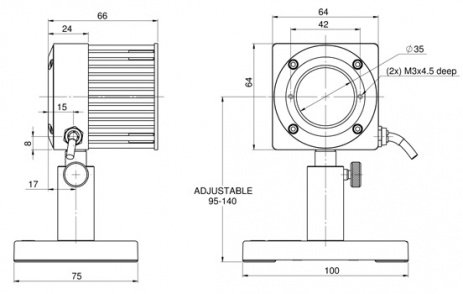

L50(150)A-PF-35 P/N7Z02737 Laser Measurement Sensor Drawing：

L50(150)A-PF-35 Drawing

L50(150)A-PF-35 P/N7Z02737 Laser Measurement Sensor Specification：

Absorber Type	PF
Aperture	?35mm
Spectral Range	0.15-20μm
Power Range	100mW-150W
Energy Range	50mJ-300J
Dimensions	64 L x 64 W x 66 D (mm)
Max Pulse Energy	300J
Max Average Power Density	3kW/cm2
Response Time	2 s
Max Energy Density (for <100ns)	1.5J/cm2
Max Energy Density (for 2ms)	15J/cm2
Max Average Power	150W
