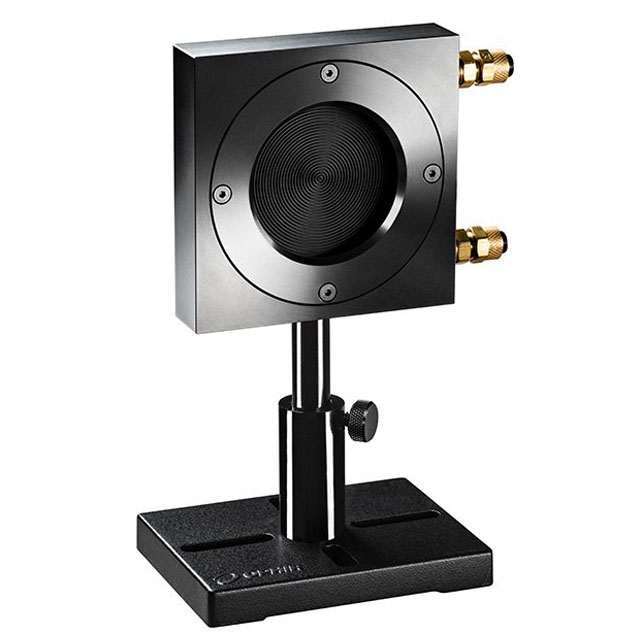

The L300W-LP2-50 is a water cooled low profile thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 0.5W to 300W and energy from 200mJ to 300J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2 and 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
L300W-LP2-50P/N7Z02776 Drawing
| Absorber Type | LP2 |
| Aperture | ?50mm |
| Spectral Range | 0.35-2.2μm, 10.6μm |
| Power Range | 0.5W-300W |
| Energy Range | 200mJ-300J |
| Backscattered Power | N.A. |
| Dimensions | 90 L x 90 W x 20 D (mm) |
| Max Pulse Energy | 300J |
| Max Average Power Density | 12kW/cm2 |
| Response Time | 2.5 s |
| Max Energy Density (for <100ns) | 0.07J/cm2 |
| Max Energy Density (for 2ms) | 90J/cm2 |
| Max Average Power | 300W |
| BeamTrack Functions | N.A. |
| Compliance | CE, China RoHS |
