IPT-20 - IPT-21 Process transmitter

Updated:2025-03-13

Views:173

  • Brand: WIKA
  • Model: IPT-20 - IPT-21
  • Description: With its 4 ... 20 mA, 4 ... 20 mA HART?, PROFIBUS? PA or FOUNDATION Fieldbus? output signals, combined with either intrinsic safety or flameproof enclosure ignition protection type (in accordance with
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

IPT-20 - IPT-21 Process transmitter Description:

Operating Instruction #1 Operating Instruction #2

With its 4 ... 20 mA, 4 ... 20 mA HART®, PROFIBUS® PA or FOUNDATION Fieldbus? output signals, combined with either intrinsic safety or flameproof enclosure ignition protection type (in accordance with ATEX and IECEx), the model IPT-2x is ideally suited to applications with the highest demands on the measurement technology.

Versatile in application

As a result of the available measuring ranges of 0 ... 0.1 bar to 0 ... 4,000 bar [0 ... 0.15 to 0 ... 60,000 psi] and a freely selectable turndown, the instrument can be used in almost any application. The large number of process connections and the extensive possibilities offered by the metallic measuring cell enable use in all industries.

There are seven different case variants available, and thus it is possible to select a variant suited to every operating environment.

The case itself can be rotated through 330° and is available in plastic, aluminium and stainless steel. An electropolished stainless steel case (316L) is available to meet the high demands of the food and pharmaceutical industries.

Easy configuration and operation

Service and configuration at the instrument is carried out using the optional display and operating module, which can be fitted in four positions. The operating menu has a simple and self-explanatory structure and has nine selectable languages as standard. Alternatively, the operating parameters can be set using the PACTware? free and non-proprietary configuration software. An instrumentspecific DTM enables easy integration into corresponding process control systems.

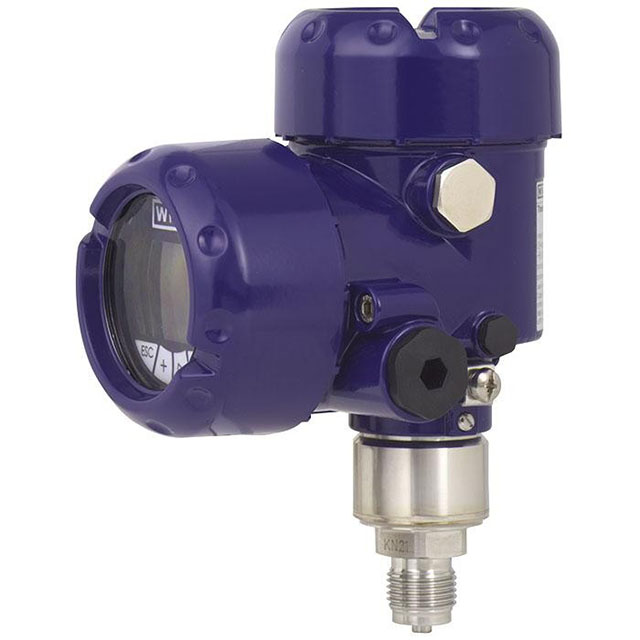

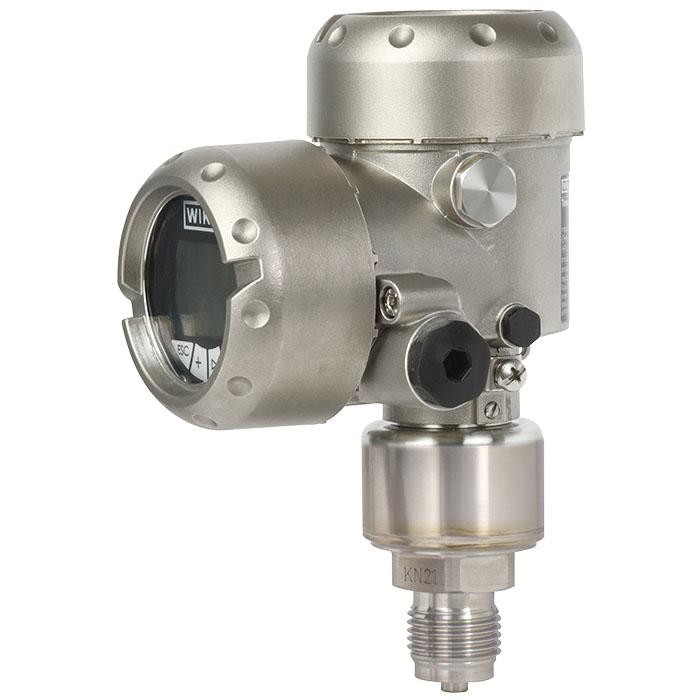

Double chamber case, cast stainless steel

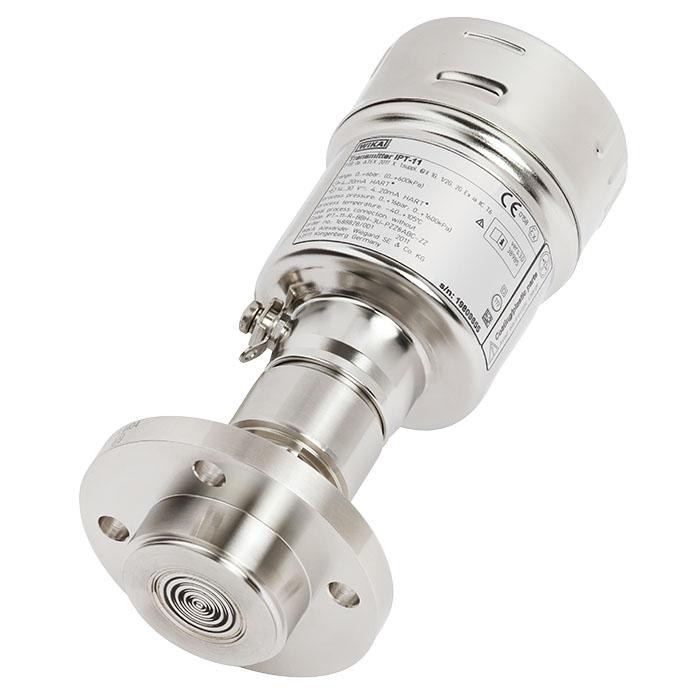

Single chamber case,electropolished stainless steel,for sanitary applications

Applications

Chemical and petrochemical industries

Process engineering

Pharmaceutical industry

Food and beverage industry

Hazardous areas

Special features

Ex protection per ATEX and IECEx

For applications to SIL 2 (SIL 3)

Welded metal measuring cell

Seven different case variants

Configuration via EDD and DTM (Device Type Manager) in accordance with the FDT (Field Device Tool) concept, e.g. PACTware
