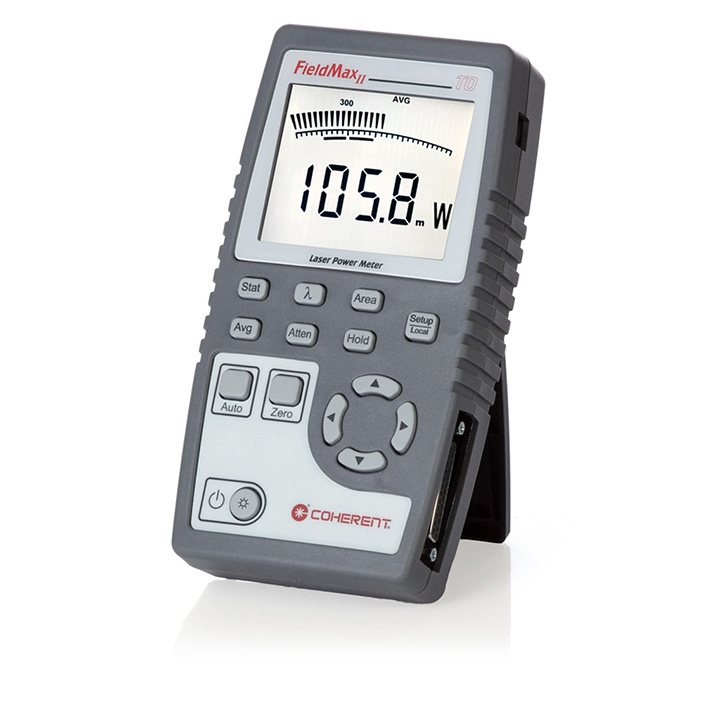

Coherent FieldMaxII-TO Laser Power Meter

Updated:2025-03-13

Views:215

  • Brand: Coherent
  • Model: FieldMaxII-TO
  • Description: The FieldMaxII-TO is a power-only version of the FieldMaxII-TOP. The FieldMaxII-TO laser power meter functions with a broad range of thermopile and optical sensors. Together, these sensors enable Fiel
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent FieldMaxII-TO Laser Power Meter Description：

Datasheet User's Manual

The FieldMaxII-TO is a power-only version of the FieldMaxII-TOP. The FieldMaxII-TO laser power meter functions with a broad range of thermopile and optical sensors. Together, these sensors enable FieldMaxII-TO to measure UV, visible, and IR laser output from the nanowatt to the kilowatt range, and to work with CW and pulsed lasers.

Key Features:

Large, bright, backlit LCD display

Digital accuracy with analog-like movement for laser tuning

Works with thermopile and optical sensors only

USB computer interface (Windows 8 and 10 [32 and 64 bit] compatible)

Analog output with selectable full-scale voltage (1,2, and 5V)

Rechargeable battery included

ISO 17025 accredited

Specifications

1 Day Ship
Yes
External Trigger Input
No
Battery Operation
Yes
Calibration Uncertainty (%)(k=2)
±1.0%
Measurement Resolution
0.1% of full scale
Thermopile sensor compatibility
Yes
Optical sensor compatibility
Yes
Pyroelectric sensor compatibility
No
PowerMax-Pro sensor compatibility
No
Measurement Range
Sensor dependent (reference sensor specifications)
Accuracy - System
Meter accuracy + sensor accuracy
Accuracy - Analog Output
±1.0%
Power Sampling Rate
10 Hz
USB Interface
Yes
RS232 Interface
No
Analog output
Yes
Analog Output
0 to 1, 2, or 5 VDC (selectable)
Display
58 x 73 mm fixed-segment LCD with backlight
Trigger
N/A
Statistical Analysis
Average, Max, Min
Size (H x W x D)
200 x 100 x 40 mm (7.87 x 3.94 x 1.57 in.)
Weight
1.0 kg (2.2. lbs.)
Computer Interface
USB, LabVIEW, PC application
Compliance
CE, RoHS, WEEE, ISO 17025
Instrument Power
12VDC - center positive; (90 to 260 VAC, 50/60 Hz AC power adapter included)
