FL250A-BB-50-PPS P/N7Z07902 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: FL250A-BB-50-PPS
Description: The BeamTrack series FL250A-BB-50-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 50mm aperture and can measure beam size to 5% accuracy and posit
Data download

Feedback
WeChat

QQ

Online Service

Product Details

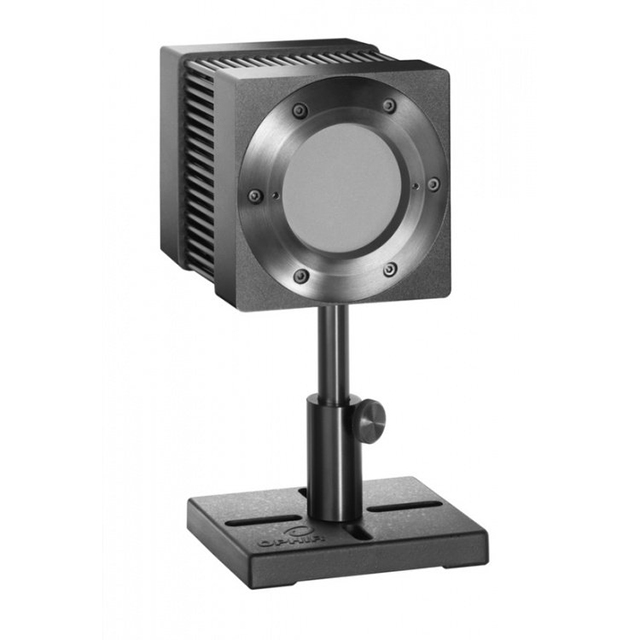

FL250A-BB-50-PPS P/N7Z07902 Laser Measurement Sensor Introduction：

The BeamTrack series FL250A-BB-50-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 50mm aperture and can measure beam size to 5% accuracy and position to 0.2mm accuracy. It measures power from 150mW to 250W and energy from 80mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm.The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

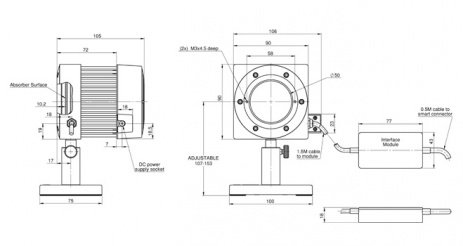

FL250A-BB-50-PPS P/N7Z07902 Laser Measurement Sensor Drawing：

FL250A-BB-50-PPS Drawing

FL250A-BB-50-PPS P/N7Z07902 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	?50mm
Spectral Range	0.19-20μm
Power Range	150mW-250W
Energy Range	80mJ-300J
Backscattered Power	N.A.
Dimensions	90 L x 90 W x 105 D (mm)
Max Pulse Energy	300J
Max Average Power Density	10kW/cm2
Response Time	2.8 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	250W
BeamTrack Functions	Power/Energy/Position/Size
