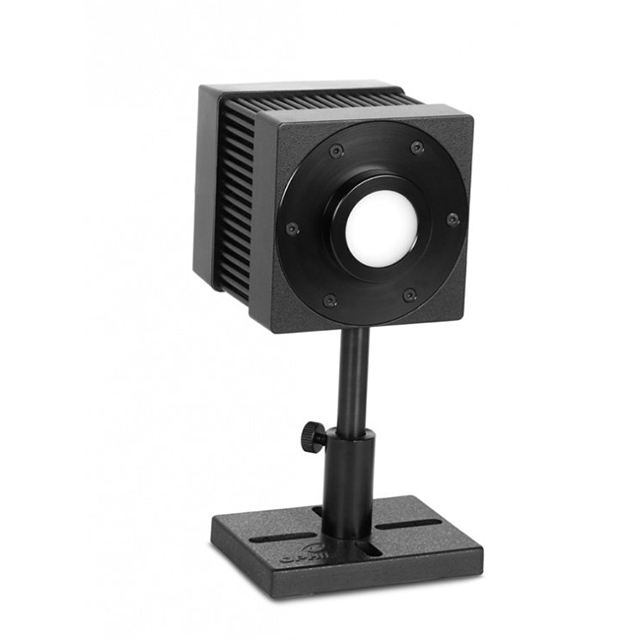

The F100A-PF-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 33mm aperture and can withstand pulses of up to 4J/cm2. It can measure power from 50mW to 100W and energy from 60mJ to 200J and covers the spectral range from 0.24 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

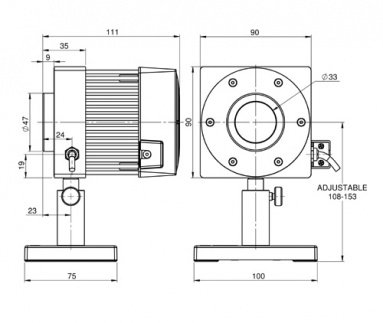

F100A-PF-DIF-33 Drawing
| Absorber Type | PF type + diffuser |
| Aperture | ?33mm |
| Spectral Range | 0.24 – 2.2μm |
| Power Range | 50mW-100W |
| Energy Range | 60mJ-200J |
| Backscattered Power | N.A. |
| Dimensions | 90 L x 90 W x 111 D (mm) |
| Max Pulse Energy | 200J |
| Max Average Power Density | >6 kW/cm2 |
| Response Time | 2.5 s |
| Max Energy Density (for <100ns) | 4J/cm2 |
| Max Energy Density (for 2ms) | 35J/cm2 |
| Max Average Power | 100W |
| BeamTrack Functions | N.A. |
