30A-N-18 P/N7Z02695 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 30A-N-18
Description: The 30A-N-18 is a thermal power/energy laser measurement sensor for high power density YAG lasers with an 17.5mm aperture. It can measure from 60mW to 30W and from 30mJ to 200J. It has the N type volu
Data download

Feedback
WeChat

QQ

Online Service

Product Details

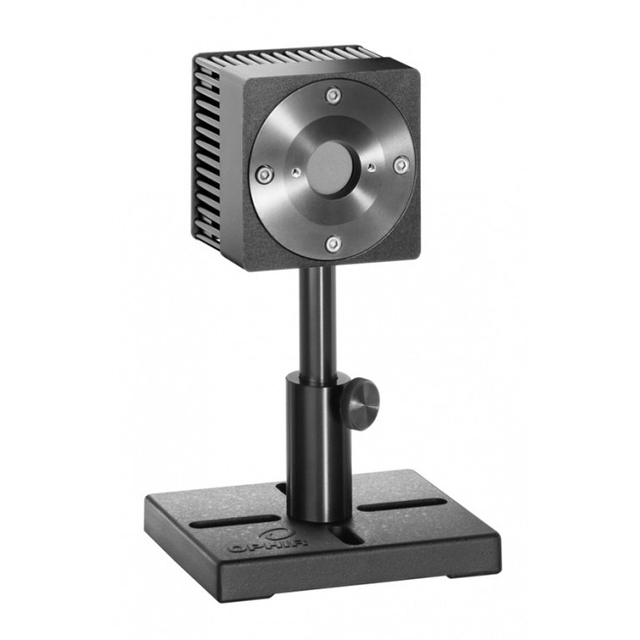

30A-N-18 P/N7Z02695 Laser Measurement Sensor Introduction：

The 30A-N-18 is a thermal power/energy laser measurement sensor for high power density YAG lasers with an 17.5mm aperture. It can measure from 60mW to 30W and from 30mJ to 200J. It has the N type volume absorber and can measure 0.532 and 1.064μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

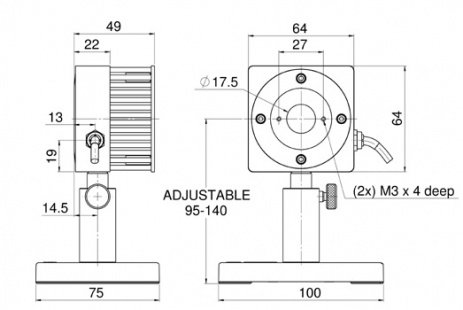

30A-N-18 P/N7Z02695 Laser Measurement Sensor Drawing：

30A-N-18 Drawing

30A-N-18 P/N7Z02695 Laser Measurement Sensor Specification：

Absorber Type	N type
Aperture	?17.5mm
Spectral Range	0.532, 1.064μm
Power Range	60mW-30W
Energy Range	30mJ-200J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 49 D (mm)
Max Pulse Energy	200J
Max Average Power Density	5kW/cm2
Response Time	2 s
Max Energy Density (for <100ns)	1J/cm2
Max Energy Density (for 2ms)	50J/cm2
Max Average Power	30W
BeamTrack Functions	N.A.
