30(150)A-SV-17 P/N7Z02724 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 30(150)A-SV-17
Description: The 30(150)A-SV-17 is thermal power/energy laser measurement sensor with high damage threshold for both power and energy. It has a 17mm aperture and can measure from 100mW to 30W continuously and to 1
Data download

Feedback
WeChat

QQ

Online Service

Product Details

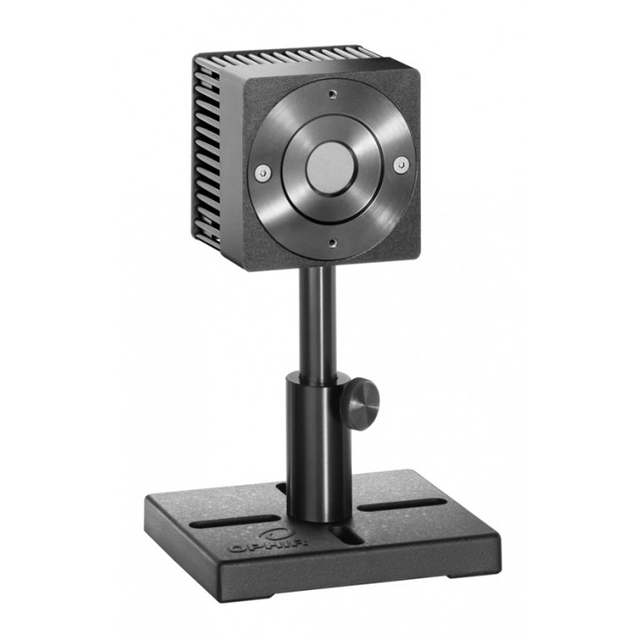

30(150)A-SV-17 P/N7Z02724 Laser Measurement Sensor Introduction：

The 30(150)A-SV-17 is thermal power/energy laser measurement sensor with high damage threshold for both power and energy. It has a 17mm aperture and can measure from 100mW to 30W continuously and to 150W intermittently. It can measure energy from 50mJ to 300J. Its SV absorber has a damage threshold of 1J/cm2 and 60kW/cm2 for repetitive pulses and covers the spectral range from 0.19 to 11μm The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

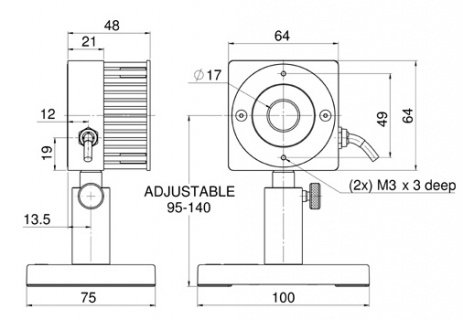

30(150)A-SV-17 P/N7Z02724 Laser Measurement Sensor Drawing：

30(150)A-SV-17 Drawing

30(150)A-SV-17 P/N7Z02724 Laser Measurement Sensor Specification：

Absorber Type	SV
Aperture	?17mm
Spectral Range	0.19 to 11μm
Power Range	100mW-150W
Energy Range	50mJ-300J
Dimensions	64 L x 64 W x 48 D (mm)
Max Pulse Energy	300J
Max Average Power Density	60kW/cm2
Response Time	1.7 s
Max Energy Density (for <100ns)	1J/cm2
Max Energy Density (for 2ms)	50J/cm2
Max Average Power	150W
