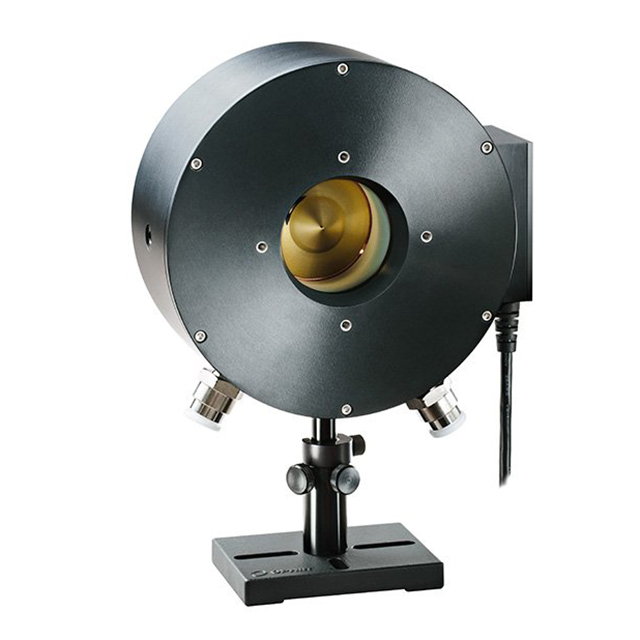

16K-W-BB-55 7Z02791 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 16K-W-BB-55
Description: The 16K-W-BB-55 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 55mm aperture. It can measure power from 100W to 16,000W. It has a deflecting cone and annul
Data download

Feedback
WeChat

QQ

Online Service

Product Details

16K-W-BB-55 7Z02791 Laser Measurement Sensor Description:

The 16K-W-BB-55 is a water cooled thermal power/energy laser measurement sensor for very high powers with a 55mm aperture. It can measure power from 100W to 16,000W. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm2. It covers the spectral range from 0.8 - 2μm and 10.6μm. 16K-W-BB-55 sensor has a module mounted on the sensor near the output cable with over temperature LED, loud audible signal and M8 3 connector interlock. The sensor comes with a standard 5 meter cable for connecting to a meter or PC interface.

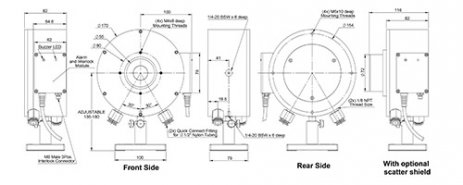

16K-W-BB-55 7Z02791 Laser Measurement Sensor Drawing：

16K-W-BB-55 Drawing

16K-W-BB-55 7Z02791 Laser Measurement Sensor Specification：

Absorber Type	Beam deflector + broadband absorber
Aperture	?55mm
Spectral Range	0.8-2μm, 10.6μm
Power Range	100W-16,000W
Energy Range	N.A.
Backscattered Power	~3.5% without Scatter Shield, ~1% with Scatter Shield
Dimensions	?170 W x 82 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	10kW/cm2
Response Time	3.5 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	N.A.
Max Average Power	16kW
BeamTrack Functions	N.A.
