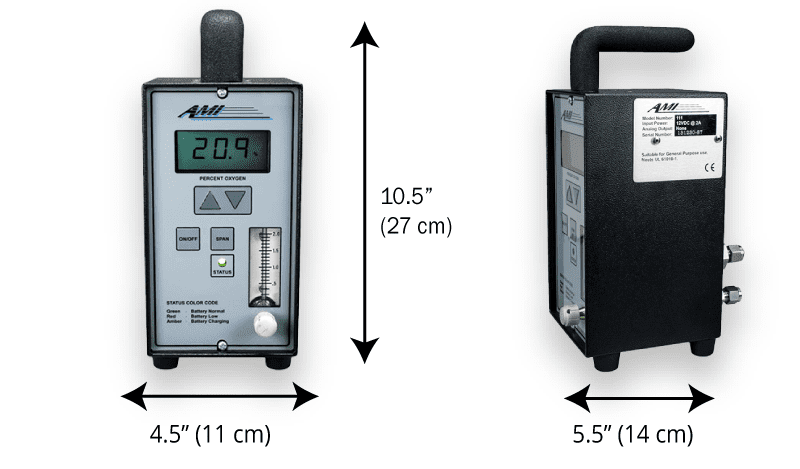

MODEL 111 Percent Oxygen Analyzer

Updated:2025-03-13

Brand: AMI
Model: MODEL 111
Description: The MODEL 111 is the ideal solution for spot-checking percent oxygen measurements in non-flammable gas samples. It utilizes a long-life zirconium oxide sensor that delivers stable readings – even in t
Data download

Feedback
WeChat

QQ

Online Service

Product Details

MODEL 111 Percent Oxygen Analyzer Description：

Operator Manual Data Sheet AMI Overview

Features & Benefits

IDEAL FOR NON-FLAMMABLE GASES

The MODEL 111 Portable Percent Oxygen Analyzer can handle non-flammable samples and is available in 3 configurations: base model, sample pump model and sample pump model for hazardous areas. The Analyzer is used in many applications, including those used for nitrogen purity, inert gas blanketing and oxygen purity.

ZIRCONIUM OXIDE SENSOR TECHNOLOGY

AMI’s zirconium oxide sensors are an extremely stable, have a very long service life, and are not affected by barometric or temperature changes. They are an excellent option for measuring percent levels of oxygen in inert atmospheres, such as the amount of oxygen in the air of an enclosed space. Additionally, these sensors last for many years and require minimal calibration.

FULL OF STANDARD FEATURES

The MODEL 111 Portable Percent Oxygen Analyzer can connect with the COMMAND CENTER software to access advanced features, including automatic data logging that provides detailed time-stamped records of O2 measurement, temperature, supply voltage and power brown-out history.

TRULY PORTABLE AND DESIGNED FOR THE FIELD

Starting at 5 lbs (7.3 kg), the MODEL 111 is the smallest, lightest, fastest and most accurate portable Percent Oxygen Analyzer in the industry.

Technical Specifications

Physical & Eletrical Specifications
MODEL 111 Positive Pressure Samples	MODEL 111P Atmospheric Pressure Or Vacuum Samples (includes Sample Pump)	MODEL 111B Atmospheric Pressure Or Vacuum Samples In Hazardous Areas (includes Sample Pump)

WEIGHT		GAS CONNECTIONS	WETTED PARTS
MODEL 111	MODEL 111P/B
5.0 lbs (2.3 kg)	6.0 lbs (2.7 kg)	1?4” 316 S.S. compression fittings	316 S.S. fittings, electro-less nickel-plated cell block, gold-plated contacts, acrylic flow meter & O-rings (Viton, kalrez, and Buna-N)

POWER
115/230VAC to 12VDC Battery Charger. Rechargeable NiCad batteries
MODEL 111	MODEL 111P	MODEL 111B
8 hours continuous use	1 hour continuous use	1 hour continuous use

Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship. 2-year Warranty for Zirconium oxide sensors.

Operational Specifications
OUTPUT RANGES (USER SELECTABLE)		AMBIENT OPERATIONAL TEMPERATURE	FLOW RATE (RECOMMENDED)	INLET GAS PRESSURE
Standard	Optional	AMBIENT OPERATIONAL TEMPERATURE	FLOW RATE (RECOMMENDED)	Model 111	Model 111P	Model 111B
0 – 1.0% 0 – 5.0% 0 – 10.0% 0 – 25.0%	0 – 50.0% 0 – 95.0%	0°F to 130°F (-18°C to 54°C)	0.1 to 2.0 SCFH (0.05 – 1.0 Lpm)	0.5 ? 100 psig (0.03 ? 6.9 bar)	-14 in Hg ? 10 psig (0.03 ? 0.7 bar)	-14 in Hg ? 10 psig (0.03 ? 0.7 bar)

Analyzer Performance Specifications
90% UPSCALE RESPONSE TIMES FOR SPECIFIC RANGES		REPEATABILITY	APPROVALS
0 - 25%	0 - 95%	REPEATABILITY	Model 111	Model 111P	Model 111B
< 12 sec	< 12 sec	±0.1% of range or ±0.1% of oxygen, whichever is greater	Meets UL Requirements (EN 61326-1). CE Mark	Meets UL Requirements (EN 61326-1). CE Mark	Designed to meet Class 1, Div 2, Groups C,D

Analyzer Key Features
ZIRCONIUM OXIDE SENSOR	10-year life expectancy (note: sensor is not field replaceable)
COMMAND CENTER	Software that works across AMI’s Analyzers and gives users access to advanced functions: Error Status Display Calibration Details Time-stamped data logger with adjustable interval recording for: ? O₂ Measurement ? Temperature ? Battery Voltage
ACCESSORIES	Carrying Case Flexible High Pressure Sample Tubing Auxiliary Power Adapter
